1SFA896109R1100

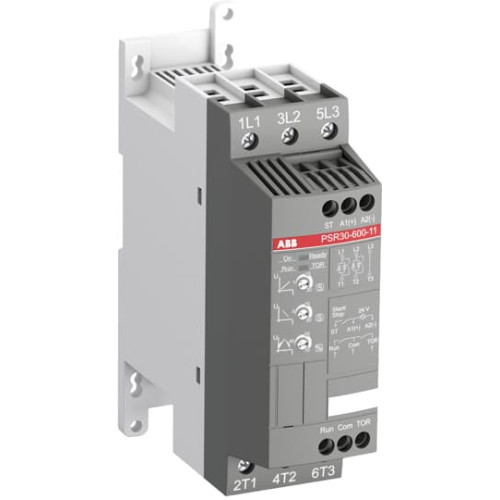

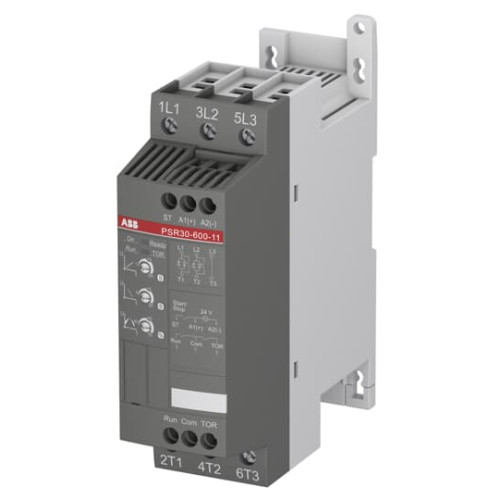

PSR30-600-11 Softstarter - 30 A - 208 ... 600 V AC

Manufacturer's No: PSR30-600-11     Manufacturer: ABB
PSR30-600-11 Softstarter - 30 A - 208 ... 600 V AC

Availability Available to order

£398.10
  • Model: PSR30-600-11 Softstarter
  • Rated Operational Current: 30 A
  • Operating Voltage: 208...600 V AC
  • Rated Control Voltage: 24 V AC/DC
  • Features a two-phase control soft start and stop through a voltage ramp
  • Built-in bypass for easy installation and energy saving
  • Relay output provides RUN and TOR signals in normally open state
  • Start/stop ramp and time easily set by three potentiometers on the front
  • Suitable for small three-phase motors with nominal currents from 3...105 A
  • Can manage up to 100 starts per hour

Read more

  • Common applications include pumps, fans, compressors, and conveyors
  • Compatible with manual motor starters (MMS) from ABB
  • Fieldbus communication option available with external adaptor and Fieldbus plug


Product

Manufacturer Material ID -
PSR30-600-11
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
1
Internal bypass -
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
30 Ampere
Rated power three-phase motor, inline, at 230 V -
7.5 Kilowatt
Rated power three-phase motor, inline, at 400 V -
15 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Voltage type for actuating -
AC/DC
ABB

Availability Available to order

£398.10
