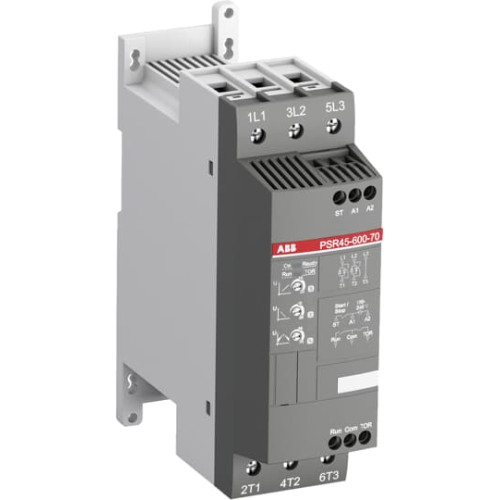

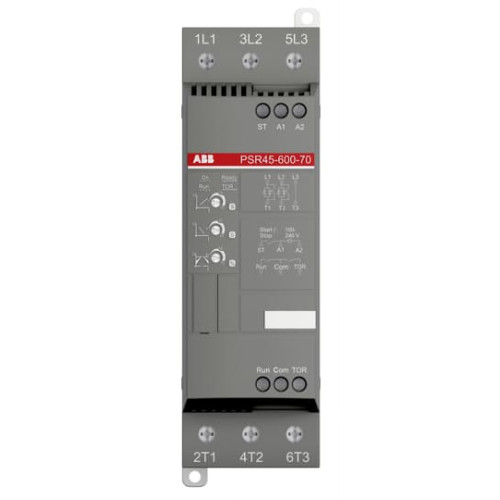

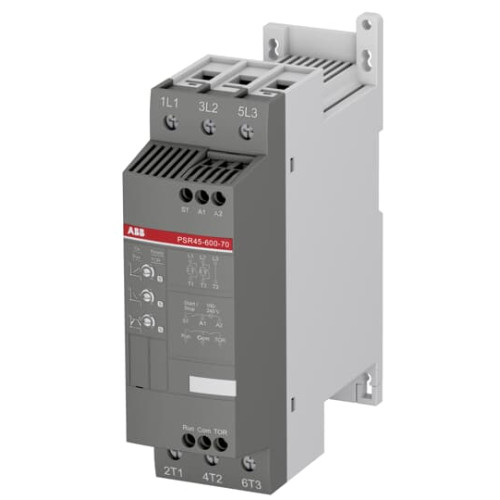

1SFA896111R7000

22kW (45A) , PSR Basic Softstart, 100 to 240VAC control

Manufacturer's No: PSR45-600-70     Manufacturer: ABB
22kW (45A) , PSR Basic Softstart, 100 to 240VAC control

Availability Available to order

£653.22
  • Power: 22 kW (45A)
  • Control Voltage: 100-240 VAC
  • Operational Current: 45 A
  • Operating Voltage: 208-600 VAC
  • Features two-phase soft start and stop
  • Built-in bypass for easy installation and energy saving
  • Relay output for RUN and TOR signals
  • Easy setting of start/stop ramp and time with potentiometers
  • Compatible with manual motor starter (MMS) from ABB
  • Fieldbus communication option available with external adaptor and plug

Read more

  • Compact design suitable for small three-phase motors (3-105 A)
  • Can handle up to 100 starts per hour
  • Common applications include pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSR45-600-70
Net Weight -
1.00kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP10
Degree of protection (NEMA) -
1
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
45 Ampere
Rated power three-phase motor, inline, at 230 V -
11 Kilowatt
Rated power three-phase motor, inline, at 400 V -
22 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Voltage type for actuating -
AC
ABB

Availability Available to order

£653.22
