1SFA896113R7000

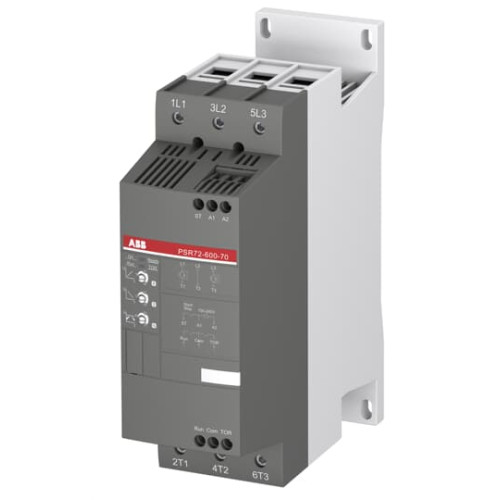

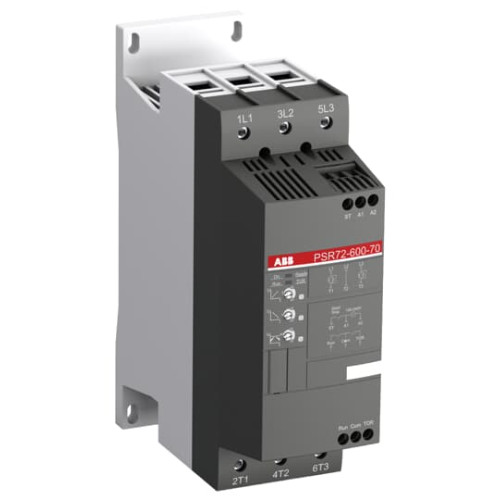

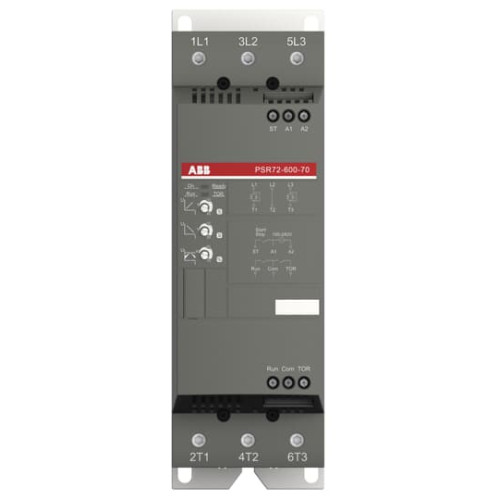

37kW (72A) , PSR Basic Softstart, 100 to 240VAC control

Manufacturer's No: PSR72-600-70     Manufacturer: ABB
37kW (72A) , PSR Basic Softstart, 100 to 240VAC control

Availability Available to order

£899.92
  • PSR Basic Softstart
  • Rated operational current: 72A
  • Operating voltage: 208-600V AC
  • Control voltage: 100-240V AC, 50/60Hz
  • Two-phase control soft start and stop
  • Built-in bypass for easy installation and energy saving
  • Relay output for RUN and TOR signals
  • Easy setting of start/stop ramp and time with potentiometers
  • Compatible with manual motor starter (MMS) from ABB
  • Option for Fieldbus communication with external adaptor

Read more

  • Suitable for small three-phase motors with 3-105A nominal currents
  • Can handle up to 100 starts per hour
  • Common applications: pumps, fans, compressors, conveyors


Product

Manufacturer Material ID -
PSR72-600-70
Net Weight -
2.27kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP10
Degree of protection (NEMA) -
1
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
72 Ampere
Rated power three-phase motor, inline, at 230 V -
22 Kilowatt
Rated power three-phase motor, inline, at 400 V -
37 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Voltage type for actuating -
AC
