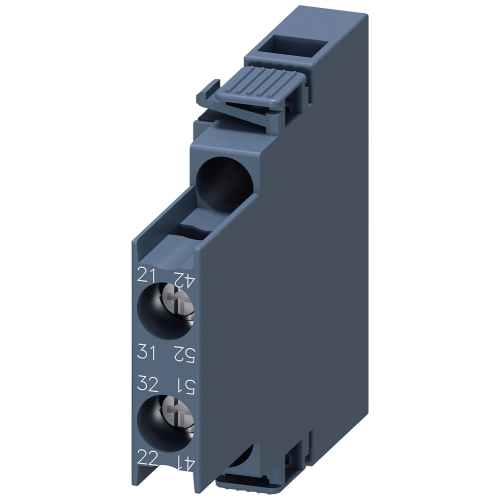

3RH29111DA02

Auxiliary switch lateral, 2 NC, current paths: 1 NC, 1 NC, for motor contactors

Manufacturer's No: 3RH2911-1DA02     Manufacturer: Siemens

Availability Back Order

£11.49
  • Auxiliary switch for contactors 3RT2.1
  • Configuration: 2 NC contacts on the left (41/42, 51/52) and 2 NC contacts on the right (21/22, 31/32)
  • Current path: 1 NC
  • Screw terminal connection
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Product video
Instructional video


Product

Manufacturer Material ID -
3RH2911-1DA02
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Lamp holder -
None
Model -
Clip-on
Lamp cap/base -
None
Mounting method -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of fault-signal switches -
0
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Screw connection
