3RA23358XB301NB3

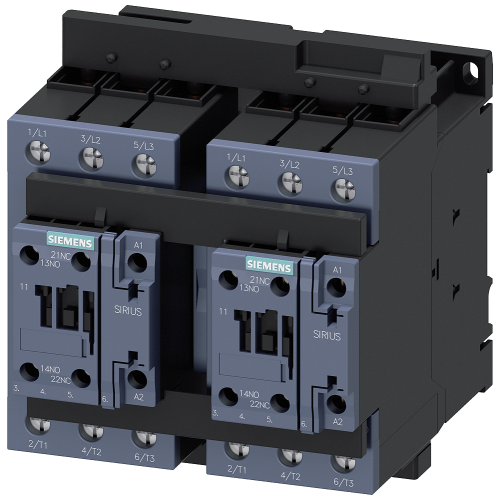

Reversing contactor assembly AC-3, 18.5 kW/400 V, 20-33 V AC/DC, 2 NO integr.

Manufacturer's No: 3RA2335-8XB30-1NB3     Manufacturer: Siemens

Availability Back Order

£430.16
  • Reversing contactor assembly
  • AC-3e/AC-3 rated
  • 41 A current rating
  • 18.5 kW power rating at 400 V
  • 3-pole configuration
  • Control voltage: 20-33 V AC/DC
  • Frequency: 50/60 Hz
  • Screw terminal connection
  • Electrical and mechanical interlock included
  • 2 auxiliary contacts: 1 NO each

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video
Product video
Presentation video
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RA2335-8XB30-1NB3
Net Weight -
2.79kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
20 Volt
Rated control supply voltage Us at AC 60HZ -
20 Volt
Rated control supply voltage Us at DC -
20 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Function -
Reversing safety
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
20 Volt
Rated control supply voltage at AC 60 Hz -
20 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-3, 400 V -
41 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Rated operation power NEMA -
22.0649625 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC

Availability Back Order

£430.16
