3RA24238XE322BB4

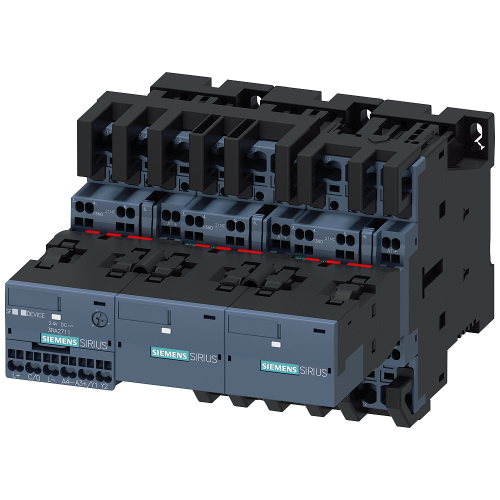

Contactor assembly for star-delta (wye-delta) start with IO-Link AC3, 11 kW/400 V 24 V DC, 3-pole S0

Manufacturer's No: 3RA2423-8XE32-2BB4     Manufacturer: Siemens

Availability Back Order

£552.11
  • Contactor for star-delta (wye-delta) start
  • I/O-Link compatible
  • AC-3 rated at 11 kW/400 V
  • 24 V DC coil voltage
  • 3-pole contact configuration, size S0
  • Equipped with spring-type terminals
  • Includes electrical and mechanical interlock
  • Integrated with 3 normally open (NO) and 3 normally closed (NC) contacts

Accessories

Component part

Question and Answer (Q&A video)
Presentation video
Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RA2423-8XE32-2BB4
Net Weight -
2.59kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Function -
Star-delta contactor
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-3, 400 V -
25 Ampere
Rated operation power at AC-3, 400 V -
11 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
DC

Availability Back Order

£552.11
