3RA61201BB32

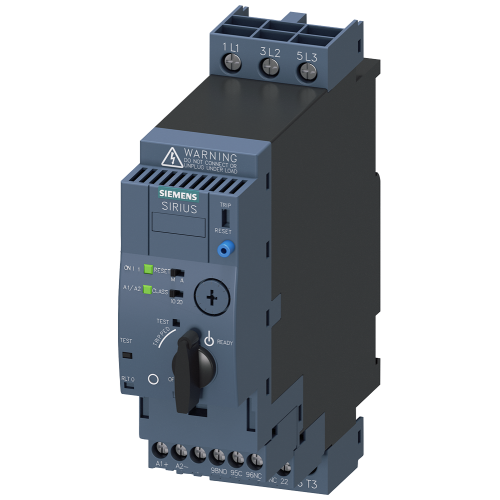

SIRIUS compact load feeder direct on-line starter 690 V, 24 V AC/DC, 50-60 Hz, 0.32-1.25 A

Manufacturer's No: 3RA6120-1BB32     Manufacturer: Siemens

Availability Back Order

£327.62
  • Load feeder type: SIRIUS Compact DOL starter
  • Voltage: 690 V
  • Control voltage: 24 V AC/DC
  • Frequency: 50-60 Hz
  • Current range: 0.32-1.25 A
  • Protection rating: IP20
  • Main circuit connection: screw terminal
  • Auxiliary circuit connection: screw terminal
Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Question and Answer (Q&A video)
Instructional video
Instructional video
Instructional video


Product

Manufacturer Material ID -
3RA6120-1BB32
Net Weight -
1.49kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

-
Siemens
Rated operation power at AC-3, 230 V, 3-phase -
- Kilowatt
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Ambient temperature, upper operating limit -
60 Degrees celsius
Coordination class according to IEC 60947-4-3 -
Class 2
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Depth -
165 Millimetre
External reset possible -
Height -
170 Millimetre
Kind of motor starter -
Direct starter
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of command positions -
1
Number of indicator lights -
2
Overload release current setting -
0.32 Ampere
Rail mounting possible -
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current at AC-3, 400 V -
1.25 Ampere
Rated operation current Ie -
1.25 Ampere
Rated operation power at AC-3, 400 V -
0.37 Kilowatt
Release class -
Adjustable
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
With short-circuit release -

Availability Back Order

£327.62
