7KM22002EA301DA1

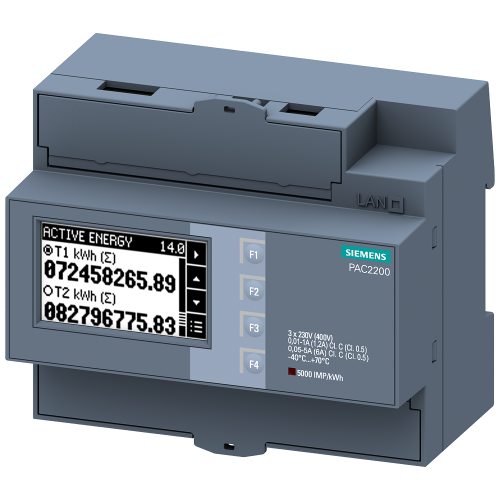

7KM PAC2200 measuring device, X/5A or X/1A Modbus RTU with display

Manufacturer's No: 7KM2200-2EA30-1DA1     Manufacturer: Siemens
7KM PAC2200 measuring device, X/5A or X/1A Modbus RTU with display

Availability Back Order

£220.65
  • Measuring device model: SENTRON 7KM PAC2200
  • Voltage: Line-Line (L-L): 400 V, Line-Neutral (L-N): 230 V
  • Current: 5 A
  • Mounting: Standard rail installation
  • Phase: 3-phase
  • Communication: Modbus RTU
  • Measurement capabilities: Apparent, active, and reactive energy
  • Power source: Self-powered
  • Connection: Screw terminals

Accessories



Product

Manufacturer Material ID -
7KM2200-2EA30-1DA1
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
90303330
Country of Origin -
HU
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
UNSPSC -
41113637

Technical Specification

-
Siemens
Ampere meter -
Blind power meter -
Frequency meter -
Pulse counter -
Voltmeter -
Effective power measurement device -
Degree of protection (IP rating) -
IP40
Energy type -
Effective power and blind power
Escapement mechanism -
Max. current (Imax) -
100 Ampere
Model -
Measurement transformer
Nominal current (In) -
5 Ampere
Nominal voltage (Un) L-L -
3 Volt
Nominal voltage (Un) N-L -
3 Volt
Number of positions total (counter) -
12
Pole type -
Three conductor/four conductor
Pulse output -
Electrical
Pulse type -
S0
Suitable for -
Purchase/supply
Tariff type -
Two-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width in number of modular spacings -
6
With lock code -

Availability Back Order

£220.65
