7KM42120BA003AA0

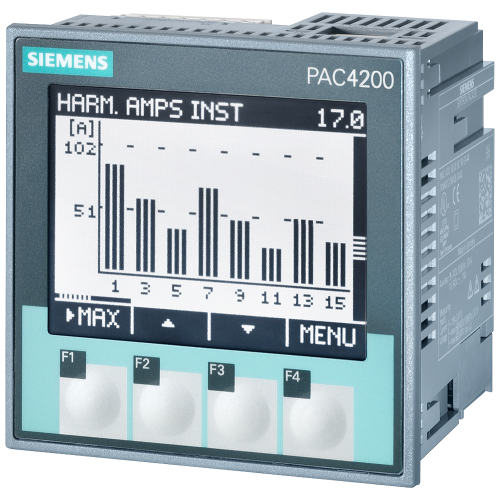

PAC4200 - 95 - 240 V AC +/-10 %, 50/60 Hz

Manufacturer's No: 7KM4212-0BA00-3AA0     Manufacturer: Siemens
PAC4200 - 95 - 240 V AC +/-10 %, 50/60 Hz

Availability Back Order

£1,006.24
  • Measuring device model: SENTRON 7KM PAC4200
  • Voltage: L-L: 690 V, L-N: 400 V
  • Current: 5 A, 3-phase
  • Communication: Modbus TCP, optional Modbus RTU / PROFINET / PROFIBUS / DI/DQ
  • Energy measurements: Apparent / active / reactive energy / cos phi
  • Harmonics: 2nd to 64th, THD
  • Accuracy: Class 0.2 acc. to IEC61557-12 or Class 0.2S acc. to IEC62053-22
  • Power supply: Wide-range 95 to 240 V +-10% (AC), 110 to 340 V +-10% (DC)
  • Display: LCD
  • Connection: Screw terminals

Accessories

Component part

Presentation video
Presentation video


Product

Manufacturer Material ID -
7KM4212-0BA00-3AA0
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
90303100
Country of Origin -
HU
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
41113637

Technical Specification

-
Siemens
Ampere meter -
Blind power meter -
Depth -
82 Millimetre
Effective power measurement device -
Ethernet-connections -
0
Frequency meter -
Height -
96 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of current measurement inputs -
3
Number of digital inputs -
2
Number of digital outputs -
2
Number of voltage measurement inputs -
3
Pulse counter -
Supply voltage AC 50 Hz -
400 Volt
Supply voltage AC 60 Hz -
690 Volt
Supply voltage DC -
110 Volt
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Voltmeter -
Width -
96 Millimetre
With audit logging (audit log) -
With firmware signature -

Availability Back Order

£1,006.24
