3UF70111AU000

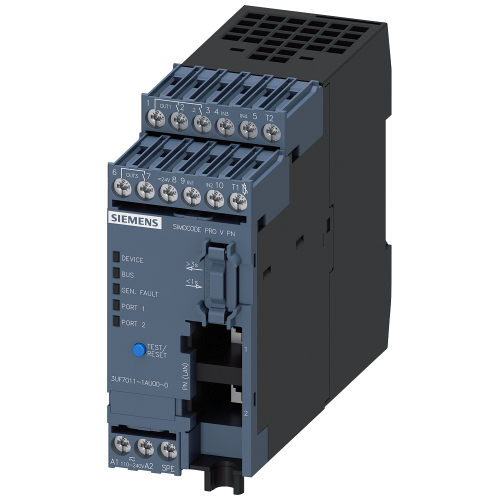

Basic unit 3 SIMOCODE pro V PN Ethernet/PROFINET IO, OPC UA server/web server

Manufacturer's No: 3UF7011-1AU00-0     Manufacturer: Siemens
Basic unit 3 SIMOCODE pro V PN Ethernet/PROFINET IO, OPC UA server/web server

View 3D

Availability In Stock

£508.26
  • Unit: SIMOCODE pro V PN
  • Communication: Ethernet/PROFINET IO with PN system redundancy
  • Interfaces: OPC UA server, web server
  • Transfer Rate: 100 Mbps
  • Connectivity: 2 x bus connection via RJ45
  • I/O: 4 inputs / 3 outputs freely parameterizable
  • Power Supply: 110 - 240 V AC/DC
  • Additional Features: Input for thermistor connection, monostable relay outputs
  • Expandability: Expandable by expansion modules
Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3UF7011-1AU00-0
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Number of analogue inputs -
-
Number of analogue outputs -
-
Rated operation current Ie -
- Ampere
Type of interface -
UN
Rated operation frequency -
- Hertz
Rated voltage Ue at AC 50 Hz -
- Volt
Rated voltage Ue at AC 60 Hz -
- Volt
Rated voltage Ue at DC -
- Volt
Degree of protection (NEMA) -
UN
Number of binary inputs -
4
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Degree of protection (IP) -
IP20
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated control supply voltage at DC -
110 Volt
Type of connection system -
None
Voltage type for actuating -
AC/DC
Current detection module -
Degree of protection (IP rating) -
IP20
Input for thermistor connection -
Number of digital inputs -
4
Number of electronic outputs -
0
Number of outputs, with contact -
3
Switching function -
Mono stable
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Voltage detection module -

Availability In Stock

£508.26
