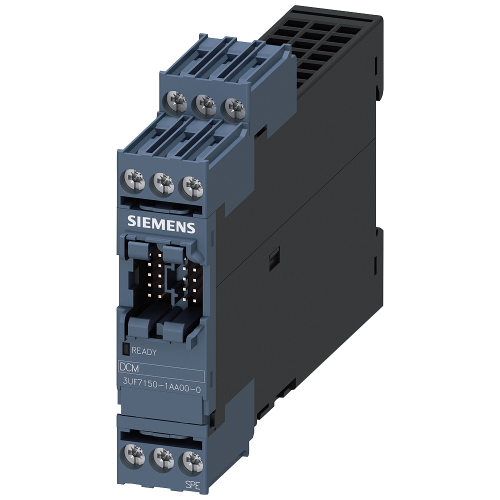

3UF71501AA000

Decoupling module, for pre-switching before the current/voltage measuring module

Manufacturer's No: 3UF7150-1AA00-0     Manufacturer: Siemens
Decoupling module, for pre-switching before the current/voltage measuring module

Availability Available to order

£206.37
  • Decoupling module for installation upstream of current/voltage measuring module
  • Designed for application in ungrounded supply systems
Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3UF7150-1AA00-0
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Switching function -
UN
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of binary inputs -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie -
- Ampere
Number of electronic outputs -
-
Type of interface -
UN
Rated operation frequency -
- Hertz
Rated voltage Ue at AC 50 Hz -
- Volt
Rated voltage Ue at AC 60 Hz -
- Volt
Rated voltage Ue at DC -
- Volt
Voltage type for actuating -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Number of outputs, with contact -
0
Type of connection system -
Through-feed technique
Type of electrical connection for auxiliary- and control current circuit -
Screw connection

Availability Available to order

£206.37
