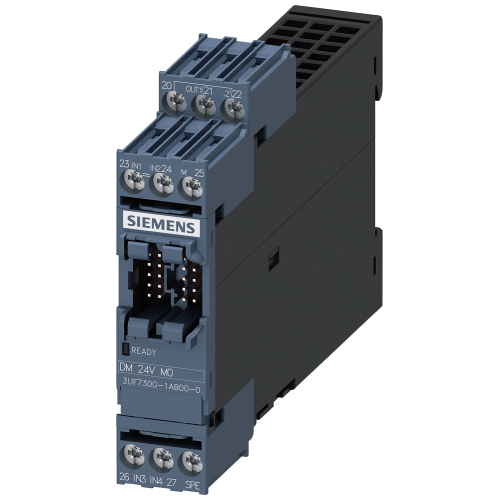

3UF73001AB000

Digital module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay output

Manufacturer's No: 3UF7300-1AB00-0     Manufacturer: Siemens

Availability In Stock

£138.47
  • Digital module with 4 inputs and 2 relay outputs
  • Input voltage: 24 V DC
  • Relay outputs: monostable
  • Maximum of 2 digital modules
  • Compatible with SIMOCODE pro V basic unit
Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3UF7300-1AB00-0
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Degree of protection (NEMA) -
UN
Number of binary inputs -
4
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Rated control supply voltage at DC -
24 Volt
Degree of protection (IP rating) -
IP20
Model -
Digital module
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
4
Number of electronic outputs -
0
Number of outputs, with contact -
2
Switching function -
Mono stable
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Voltage type for actuating -
DC

Availability In Stock

£138.47
