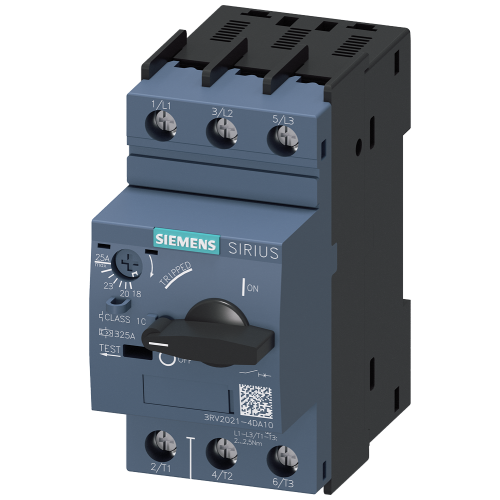

Circuit breaker, S0, motor protection, Class 10, A-release 20-25 A, short-circuit release 325 A

3RV20214DA10

Circuit breaker, S0, motor protection, Class 10, A-release 20-25 A, short-circuit release 325 A

Produced by Siemens

Availability In Stock

Price - £90.80
Circuit breaker size S0 for motor protection, CLASS 10 A-release 18...25 A N-release 325 A Screw terminal Standard switching capacity
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2021-4DA10
Net Weight -
0.37kg
Additional Product Information
Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
11 Kilowatt
Rated permanent current Iu -
25 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
18 Ampere
Rated operation power at AC-3, 230 V -
5.5 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
55 kiloampere
Adjustment range undelayed short-circuit release -
325 Ampere
