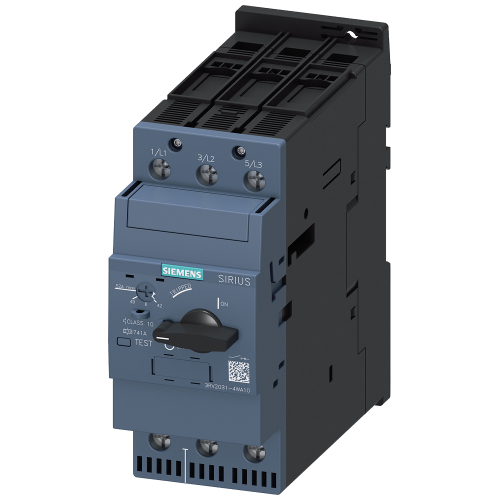

Circuit breaker, motor protection, Class 10, A-release 42-52 A, short-circuit release

3RV20314WA10

Circuit breaker, motor protection, Class 10, A-release 42-52 A, short-circuit release

Produced by Siemens

Availability In Stock

Price - £210.77
Circuit breaker size S2 for motor protection, CLASS 10 A-release 42...52 A N-release 741 A screw terminal Standard switching capacity
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2031-4WA10
Net Weight -
1.16kg
Additional Product Information
Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Width -
55 Millimetre
Height -
140 Millimetre
Depth -
149 Millimetre
Rated operation power at AC-3, 400 V -
22 Kilowatt
Rated permanent current Iu -
52 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
42 Ampere
Rated operation power at AC-3, 230 V -
15 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
65 kiloampere
Adjustment range undelayed short-circuit release -
741 Ampere
