3RV23314DC10

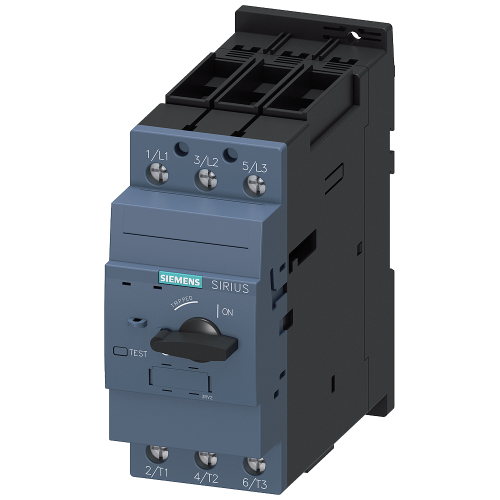

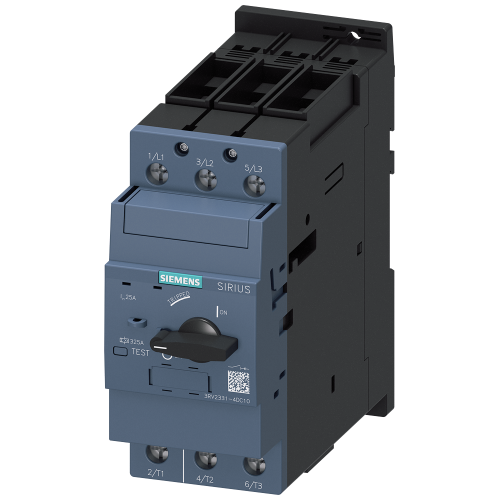

Circuit breaker, for starter combination, rated current 25 A, short-circuit release 325 A

Manufacturer's No: 3RV2331-4DC10     Manufacturer: Siemens
Circuit breaker, for starter combination, rated current 25 A, short-circuit release 325 A

View 3D

Availability Back Order

£150.46
  • Circuit breaker size: S2
  • Rated current: 25 A
  • N-release: 325 A
  • Screw terminal
  • Standard switching capacity

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2331-4DC10
Net Weight -
1.04kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

-
Siemens
Overload release current setting -
- Ampere
Degree of protection (IP) -
IP20
Type of control element -
Rotating button
Rated short-circuit breaking capacity lcu at 400 V, AC -
65 kiloampere
Adjustment range undelayed short-circuit release -
325 Ampere
Degree of protection (IP rating) -
IP20
Depth -
149 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
140 Millimetre
Number of poles -
3
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
5.5 Kilowatt
Rated operation power at AC-3, 400 V -
11 Kilowatt
Rated permanent current Iu -
25 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
65 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
55 Millimetre

Availability Back Order

£150.46
