3SE51220CH50

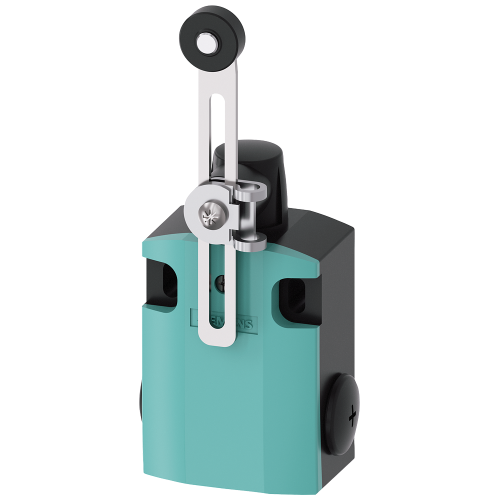

Position switch, metal encl. 56 mm wide, 1 NO/1 NC

Manufacturer's No: 3SE5122-0CH50     Manufacturer: Siemens

Availability Back Order

£52.33
  • Position switch with metal enclosure, 56mm wide
  • Device connection: 3x (M20x1.5)
  • 1 NO/1 NC quick action contacts
  • Rotary actuator with adjustable length metal lever (100mm) and plastic roller (19mm)
  • Actuator can be adjusted for right/left rotation

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3SE5122-0CH50
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Metal
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Type of electric connection -
Cable entry metrical
Type of control element -
Adjustable rotary lever
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
53.2 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
192 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
0
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
56 Millimetre

Availability Back Order

£52.33
