3SE52420HK50

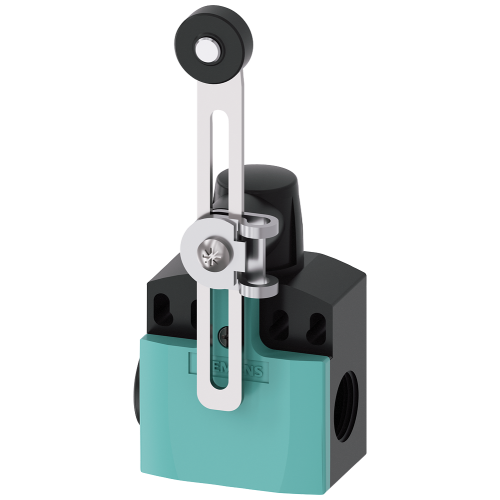

Position switch, plastic enclosure, EN50047

Manufacturer's No: 3SE5242-0HK50     Manufacturer: Siemens
Position switch, plastic enclosure, EN50047

Availability In Stock

£38.15
  • Position switch with plastic enclosure
  • Dimensions: 50 mm
  • Device connection: 2 x M20 x 1.5
  • Contacts: 1 NO/1 NC quick action
  • Adjustable-length twist lever with plastic roller: 19 mm
  • Lever can be adjusted to the right or left

Accessories

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5242-0HK50
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Plastic
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Type of electric connection -
Cable entry metrical
Type of control element -
Adjustable rotary lever
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
49.4 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
167 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
0
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
50 Millimetre

Availability In Stock

£38.15
