3SU18030AC002AB1

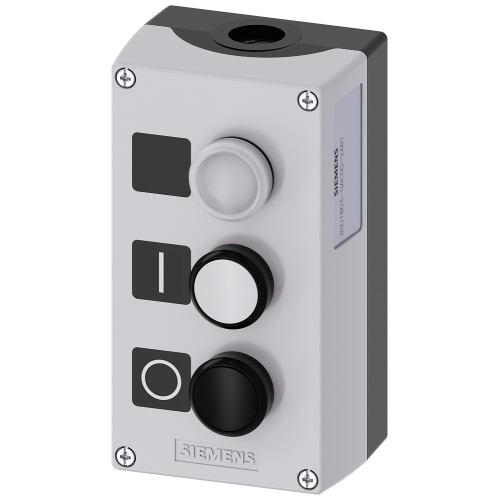

Enclosure for command devices, 22 mm, round, button white

Manufacturer's No: 3SU1803-0AC00-2AB1     Manufacturer: Siemens
Enclosure for command devices, 22 mm, round, button white

View 3D

Availability Back Order

£68.26
  • Enclosure for command devices: 22 mm round
  • Enclosure material: Plastic, gray top part
  • 3 control points: C=Indicator light (clear, LED 24 V, screw terminal), B=Pushbutton (white, label: I, 1 NO, screw terminal), A=Pushbutton (black, label: O, 1 NC, screw terminal)
  • Floor mounting with 1xM20 each on top and bottom
  • Labels enclosed

Selectable mandatory product

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1803-0AC00-2AB1
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Material housing -
Plastic
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP67/IP69K
Degree of protection (NEMA) -
13
Colour housing cover -
Grey
Degree of protection (IP rating) -
IP67/IP69K
Housing material -
Plastic
Number of command positions -
3
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of indicator lights -
1
Number of key switches -
0
Number of mushroom-shaped push-buttons -
0
Number of push buttons -
2
Number of selector switches -
0
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt

Availability Back Order

£68.26
