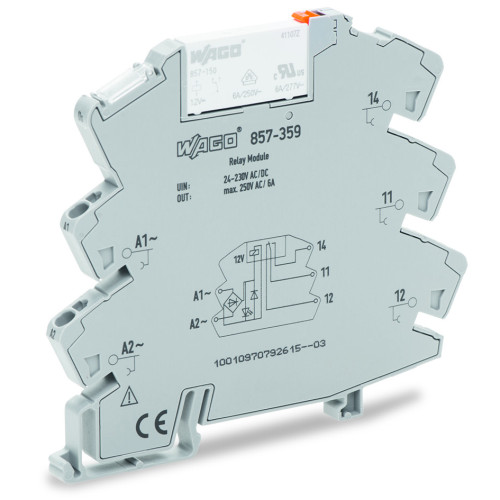

857-359

Relay module, Nominal input voltage: 24 … 230 V AC/DC, 1 changeover contact, Limiting continuous cur

Manufacturer's No: 857-359     Manufacturer: WAGO
Relay module, Nominal input voltage: 24 … 230 V AC/DC, 1 changeover contact, Limiting continuous cur

Availability Available to order

£21.84
  • Relay module for switching applications
  • Nominal input voltage: 24 to 230 V AC/DC
  • 1 changeover contact
  • Limiting continuous current: 6 A
  • Yellow status indicator
  • Module width: 6 mm

Adaptor, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-128
Price £0.23
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
Available to order

Jumper, 2-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-482
Price £0.57
Available to order

Protection cover, transparent

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-184
Price £0.18
Available to order


Product

Manufacturer Material ID -
857-359
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
94 Millimetre
Drive, polarization -
Polarity free
Drive, switching attitude -
Mono stable
Height -
94 Millimetre
Nominal current -
6 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
AC/DC
Width -
6 Millimetre
With LED indication -

Availability Available to order

£21.84
