857-368/006-000

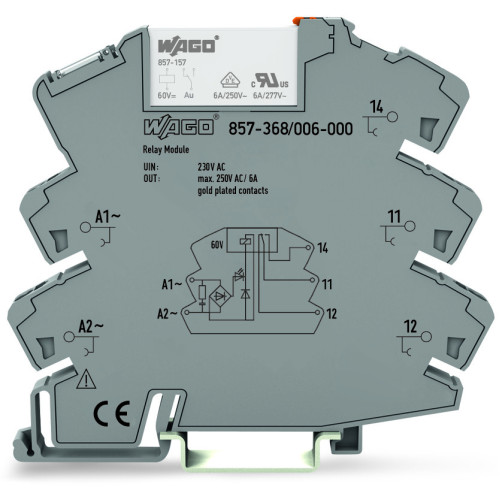

Socket with miniature switching relay 230 VAC 16 mA Relay with 1 changeover contact (1u) with integrated base load module

Manufacturer's No: 857-368/006-000     Manufacturer: WAGO
Socket with miniature switching relay 230 VAC 16 mA Relay with 1 changeover contact (1u) with integrated base load module

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.00

POA
  • Relay module with 1 changeover contact
  • Nominal input voltage: 230 VAC
  • Limiting continuous current: 6 A
  • Gold contacts for enhanced durability
  • Integrated base load module
  • Yellow status indicator
  • Module width: 6 mm
  • Wire size compatibility: 2.50 mm²
  • Color: Gray

Adaptor, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-128
Price £0.23
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
Available to order

Jumper, 2-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-482
Price £0.57
Available to order

Protection cover, transparent

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-184
Price £0.18
Available to order


Product

Manufacturer Material ID -
857-368/006-000
Net Weight -
0.85kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121521

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
94 Millimetre
Drive, polarization -
Polarity free
Drive, switching attitude -
Mono stable
Height -
94 Millimetre
Nominal current -
6 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
AC
Width -
6 Millimetre
With LED indication -
