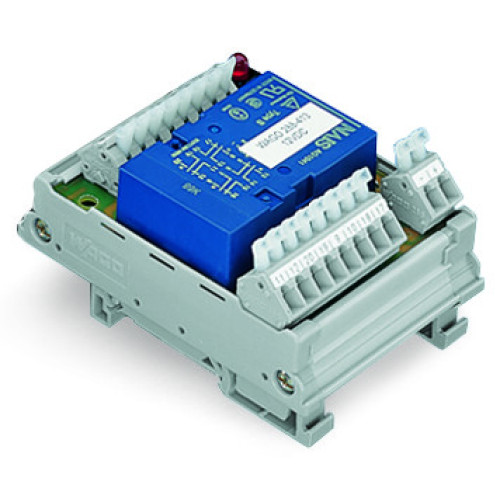

288-414

Relay Module, With Universal Mounting Carrier Relay With 4 Break, 4 Make Contacts

Manufacturer's No: 288-414     Manufacturer: WAGO
Relay Module, With Universal Mounting Carrier Relay With 4 Break, 4 Make Contacts

Availability Back Order

£94.02
  • Relay module with driven contacts
  • Nominal input voltage: 24 V AC/DC
  • 4 break and 4 make contacts
  • Limiting continuous current: 6 A
  • Module width: 64 mm
  • Wire size: 2.50 mm²
  • Color: Gray

Accessories



Product

Manufacturer Material ID -
288-414
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
85 Millimetre
Drive, polarization -
Polarity free
Drive, switching attitude -
Mono stable
Height -
85 Millimetre
Nominal current -
6 Ampere
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
4
Number of contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Double contact
Voltage type for actuating -
AC/DC
Width -
63.5 Millimetre
With forced-guided contacts -
With LED indication -

Availability Back Order

£94.02
