288-437

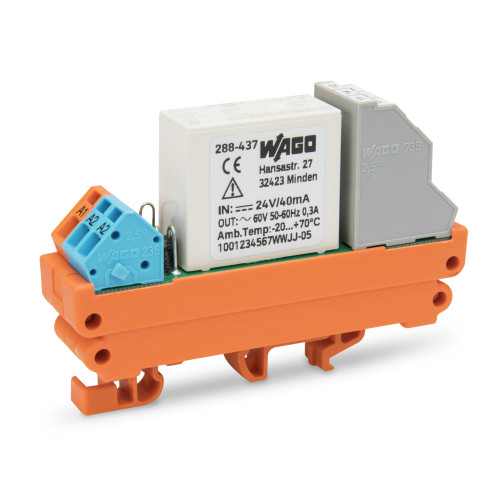

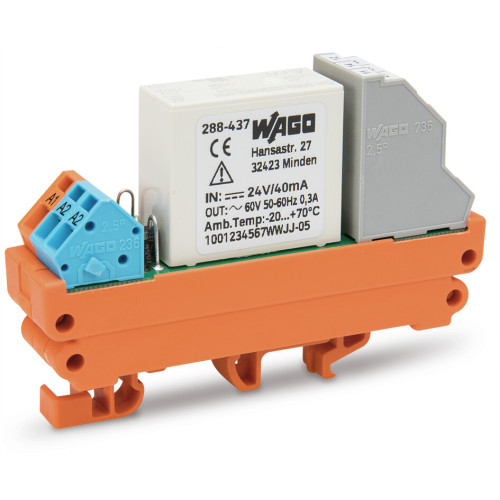

Relay module with driven contacts, Nominal input voltage: 24 VDC, 2 changeover contacts

Manufacturer's No: 288-437     Manufacturer: WAGO
Relay module with driven contacts, Nominal input voltage: 24 VDC, 2 changeover contacts

Availability On Request

£70.70
  • Relay module with driven contacts
  • Nominal input voltage: 24 VDC
  • 2 changeover contacts
  • Limiting continuous current: 5 A
  • Module width: 19 mm
  • Contact cross-section: 2.50 mm²

Accessories



Product

Manufacturer Material ID -
288-437
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
85 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
75 Millimetre
Nominal current -
5 Ampere
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
19 Millimetre
With forced-guided contacts -

Availability On Request

£70.70
