288-564

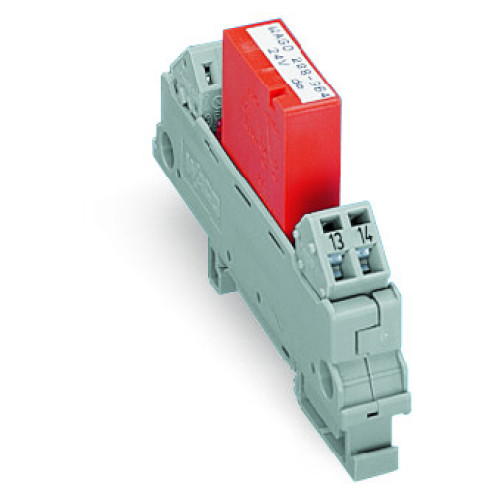

Relay module, Nominal input voltage: 24 V AC/DC, 1 make contact, gray

Manufacturer's No: 288-564     Manufacturer: WAGO
Relay module, Nominal input voltage: 24 V AC/DC, 1 make contact, gray

Availability Available to order

POA
  • Relay module for 24 V AC/DC nominal input voltage
  • 1 make contact with limiting continuous current of 5 A
  • Module width: 13 mm
  • Terminal capacity: 2.50 mm²
  • Color: Gray

Accessories



Product

Manufacturer Material ID -
288-564
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
85 Millimetre
Drive, polarization -
Polarity free
Drive, switching attitude -
Mono stable
Height -
85 Millimetre
Nominal current -
5 Ampere
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
AC/DC
Width -
13 Millimetre
