789-326

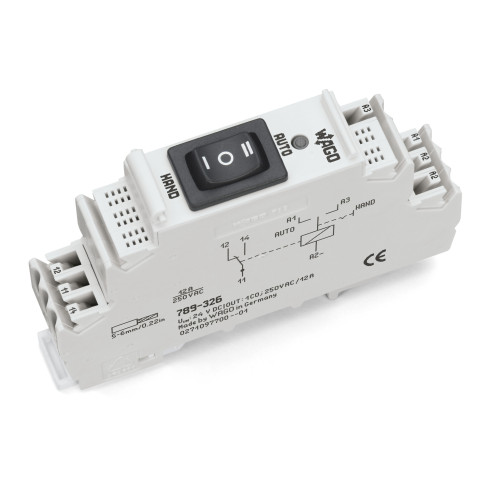

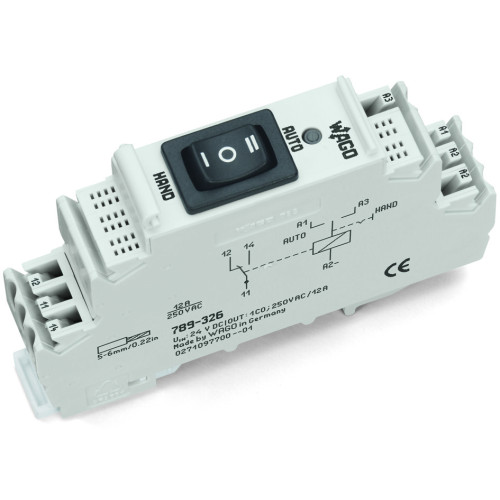

Relay module in DIN-rail-mount enclosure Relay with 1 changeover contact (1u) Manual/0FF/Auto switch for lamp loads

Manufacturer's No: 789-326     Manufacturer: WAGO
Relay module in DIN-rail-mount enclosure Relay with 1 changeover contact (1u) Manual/0FF/Auto switch for lamp loads

Availability Available to order

£42.78
  • Relay module for lamp loads
  • Nominal input voltage: 24 VDC
  • 1 changeover contact
  • Limiting continuous current: 12 A
  • Manual/Off/Auto switch
  • Red status indicator
  • Module width: 18 mm

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, MARKED, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-504
Price £3.28
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order

Jumper, 12-way, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 789-112
Price £2.62
Available to order


Product

Manufacturer Material ID -
789-326
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
90 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
90 Millimetre
Nominal current -
12 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
17.5 Millimetre
With LED indication -

Availability Available to order

£42.78
