858-304

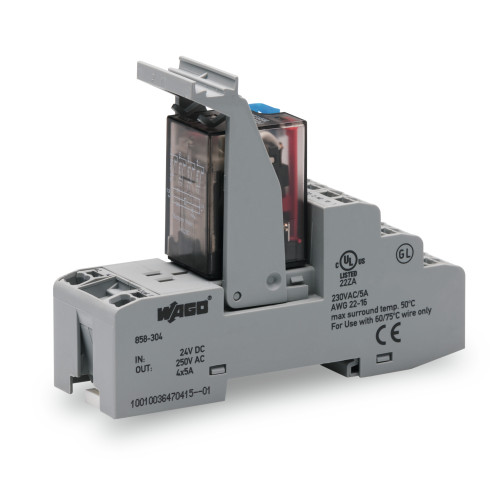

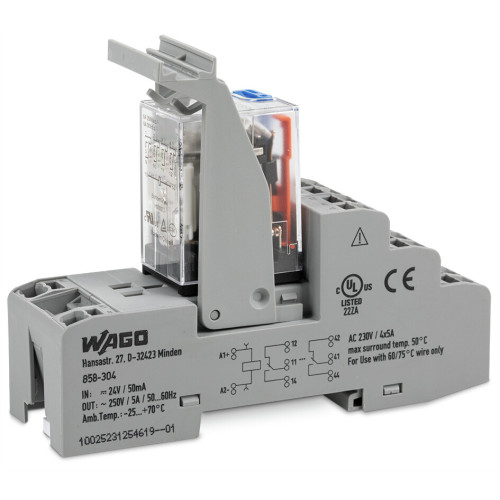

Socket with Industrial Relay, 24V DC with 4 Changeover Contacts (5A)

Manufacturer's No: 858-304     Manufacturer: WAGO
Socket with Industrial Relay, 24V DC  with 4 Changeover Contacts (5A)

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£13.59
  • Relay module for 24 VDC nominal input voltage
  • 4 changeover contacts with a limiting continuous current of 5 A
  • Manual operation feature included
  • Red status indicator for easy monitoring
  • Compact module with a width of 31 mm
  • Terminal capacity of 1.50 mm²

Accessories

Ferrule, Sleeve For 0.5 mm / Awg 22 Insulated White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-241
Price £0.09
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Back Order

Ferrule, Sleeve For 1.5 mm / Awg 16 Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-244
Price £0.09
Back Order

Pivoting Group Marker Carrier, Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-105
Price £0.24
Back Order

Push-In Type Jumper Bar, For The Coil Side

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 858-402
Price £0.88
Back Order

Group Marker Carrier, For WMB And Miniature WSB Marker Slo 10 mm Wide White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-145
Price £0.29
Back Order

Protection Cover, Transparent

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-184
Price £0.18
Back Order


Product

Manufacturer Material ID -
858-304
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
10
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
97 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
97 Millimetre
Nominal current -
5 Ampere
Number of contacts as change-over contact -
4
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
31 Millimetre
With LED indication -

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£13.59
