788-314

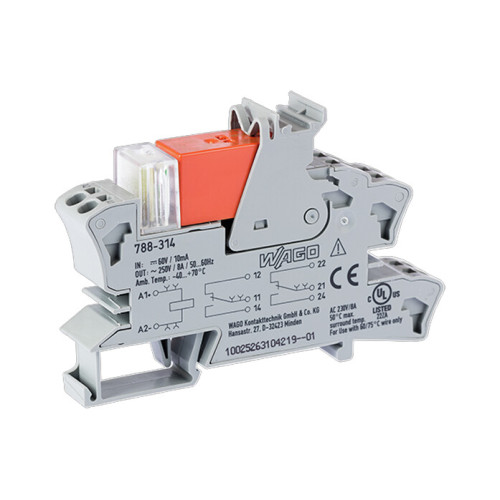

Relay module, Nominal input voltage: 60 VDC, 2 changeover contacts, gray

Manufacturer's No: 788-314     Manufacturer: WAGO
Relay module, Nominal input voltage: 60 VDC, 2 changeover contacts, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Relay module with nominal input voltage of 60 VDC
  • 2 changeover contacts
  • Limiting continuous current of 8 A
  • Red status indicator
  • Module width of 15 mm
  • Terminal capacity of 2.50 mm²
  • Color: gray


Product

Manufacturer Material ID -
788-314
Net Weight -
1.00kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
60 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
86 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
86 Millimetre
Nominal current -
8 Ampere
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
60 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
15 Millimetre
With LED indication -
