788-710

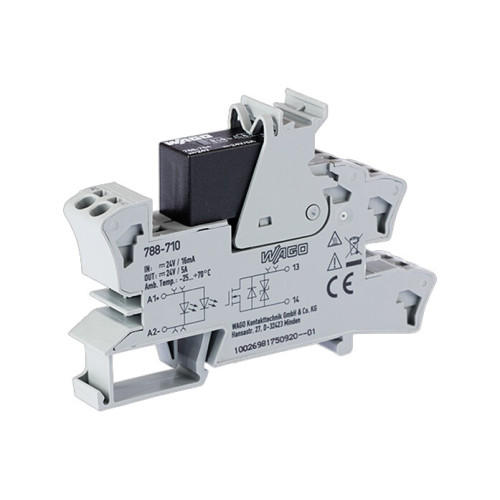

Solid-state relay module, Nominal input voltage: 24 VDC, Output voltage range: 0 … 35 VDC, gray

Manufacturer's No: 788-710     Manufacturer: WAGO
Solid-state relay module, Nominal input voltage: 24 VDC, Output voltage range: 0 … 35 VDC, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Solid-state relay module
  • Nominal input voltage: 24 VDC
  • Output voltage range: 0 to 35 VDC
  • Limiting continuous current: 5 A
  • 2-wire connection
  • Green status indicator
  • Module width: 15 mm


Product

Manufacturer Material ID -
788-710
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Input voltage -
10 Volt
Output voltage -
0 Volt
Rated operation current Ie -
5 Ampere
Type of digital output -
Electronic
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
With LED indication -
