LZS:RT3D4L24

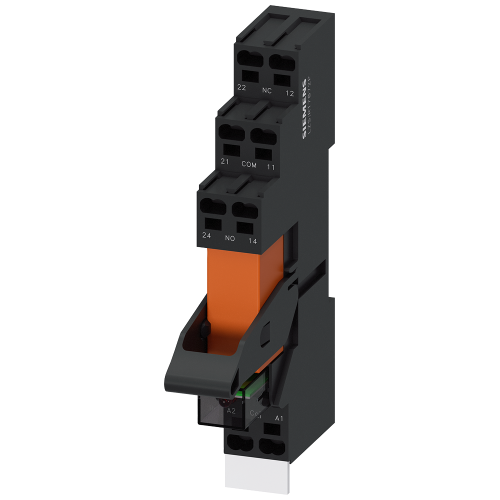

Plug-in relay complete unit 1 W, 24 V DC LED module red Socket with logic isolation Spring-type term

Manufacturer's No: LZS:RT3D4L24     Manufacturer: Siemens
Plug-in relay complete unit 1 W, 24 V DC LED module red Socket with logic isolation Spring-type term

Availability On Request

£21.11
  • Plug-in relay unit
  • 1 changeover contact
  • Operating voltage: 24 V DC
  • LED module color: Red
  • Base with logical isolation
  • Spring-loaded terminal (push-in)
Product video
Product video


Product

Manufacturer Material ID -
LZS:RT3D4L24
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
5
UNSPSC -
39122331

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Degree of protection (IP) -
IP20
Type of switch contact -
Single contact
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
71 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
98 Millimetre
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
DC
Width -
15.5 Millimetre
With LED indication -

Availability On Request

£21.11
