LZX:MT323024

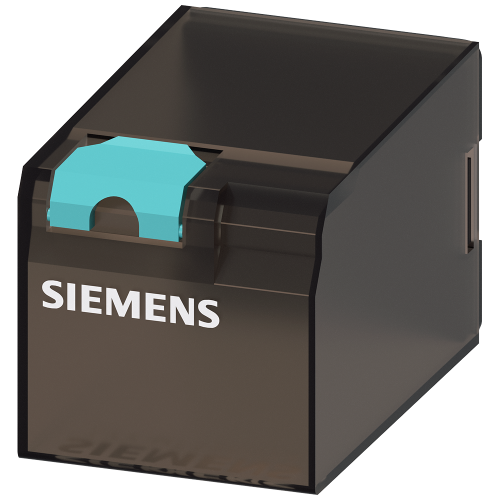

Plug-in relay, 3 change-over contacts, relay with LED 28 mm, 24 V DC

Manufacturer's No: LZX:MT323024     Manufacturer: Siemens
Plug-in relay, 3 change-over contacts, relay with LED 28 mm, 24 V DC

Availability On Request

POA

This product has been superseded by

LZS:PT3A5L24

Please check compatibility before purchasing.

  • Plug-in relay
  • 3 change-over contacts
  • LED indicator (28 mm)
  • Operating voltage: 24 V DC
Product video


Product

Manufacturer Material ID -
LZX:MT323024
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
RO
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Nominal current -
- Ampere
Type of electric connection -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Degree of protection (IP) -
UN
Type of switch contact -
Single contact

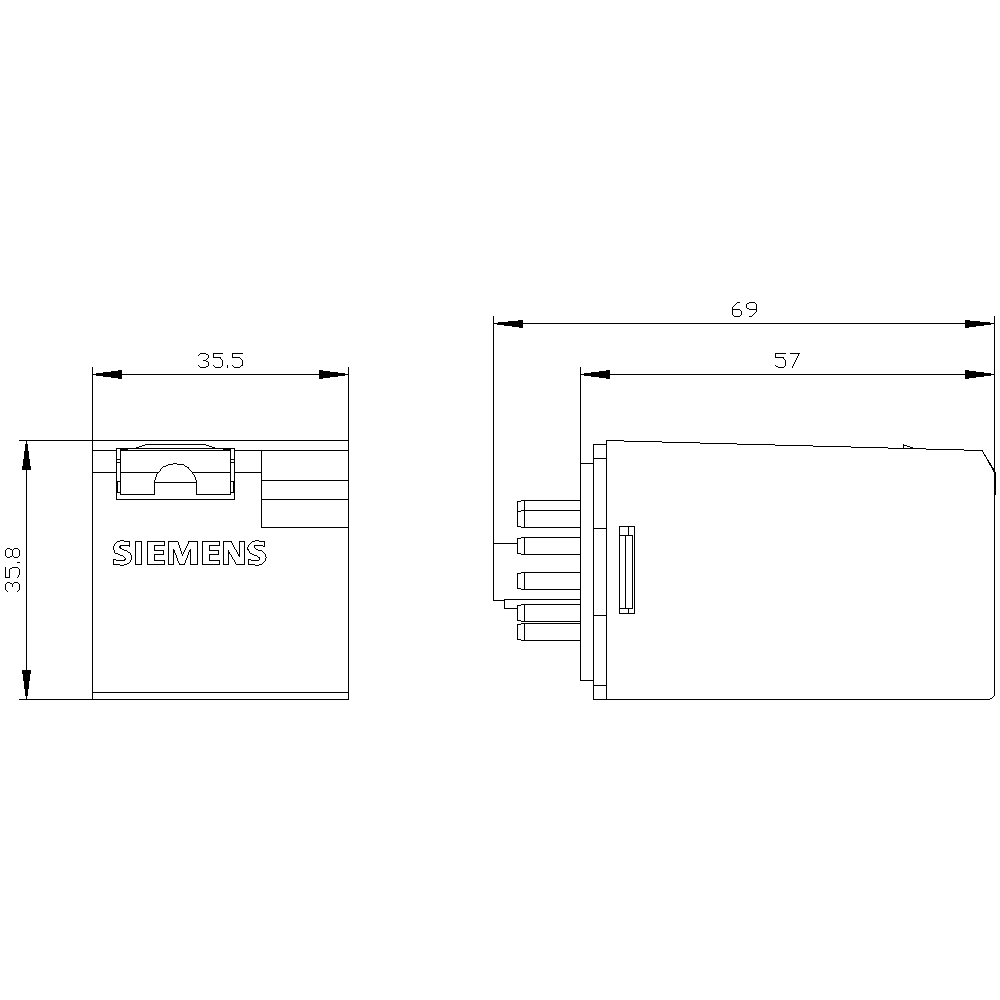

Depth -
69 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
36.5 Millimetre
Number of contacts as change-over contact -
3
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Voltage type for actuating -
DC
Width -
35.5 Millimetre

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

LZS:PT3A5L24

Please check compatibility before purchasing.
