3078244

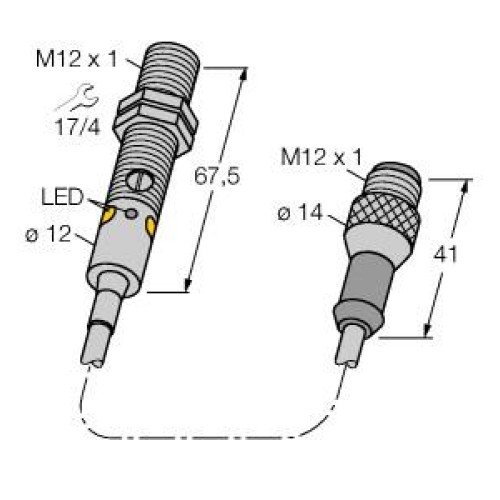

M12 Series: Fixed Field (Red), Range: 25, Input 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M12 Pigtail QD

Manufacturer's No: M12PFF25Q5     Manufacturer: Turck Banner
M12 Series: Fixed Field (Red), Range: 25, Input 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M12 Pigtail QD

Availability On Request

£145.18
  • Photoelectric Sensor
  • Diffuse Mode Sensor with Fixed-Field Background Suppression
  • Operating Voltage: 10-30 VDC
  • Max. Range: 25 mm
  • Cable Length: 0.15 m
  • Cable Type: 4-pin, M12 × 1, PVC, 150 mm
  • Protection Classes: IP67 / IP68
  • Metal Housing
  • LED Indication
  • Insufficient Excess Gain Indication

Read more

  • PNP Switching Output


Product

Manufacturer Material ID -
M12PFF25Q5
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
26111700

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
67.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
25 Millimetre
Rated switching distance -
25 Millimetre
Reaction time -
0.5 Millisecond
Setting procedure -
Other
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Turck Banner

Availability On Request

£145.18
