3095499

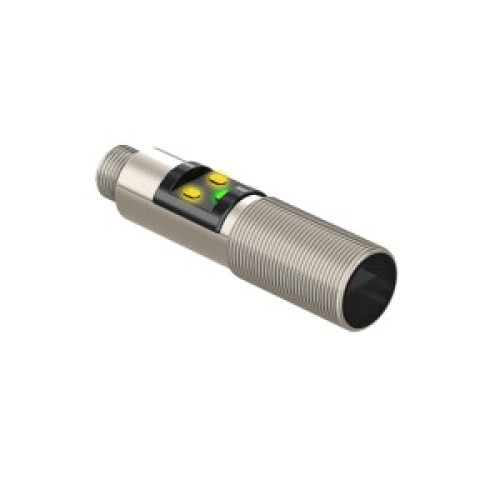

M18-4 Series: Stainless: Receiver, Range: 25 m, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Manufacturer's No: M18-4VPRL-Q8     Manufacturer: Turck Banner
M18-4 Series: Stainless: Receiver, Range: 25 m, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Availability On Request

£88.92
  • Photoelectric Sensor, Opposed Mode Sensor (Receiver)
  • Operating voltage: 10-30 VDC
  • Max. range: 25000 mm
  • M12 x 1 male connector, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40 to +70°C
  • PNP switching output, changeover


Product

Manufacturer Material ID -
M18-4VPRL-Q8
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
73 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Max. switching distance -
25000 Millimetre
Rated switching distance -
25000 Millimetre
Reaction time -
1.5 Millisecond
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
624 Nanometre
Turck Banner

Availability On Request

£88.92
