2CDA282799R0161

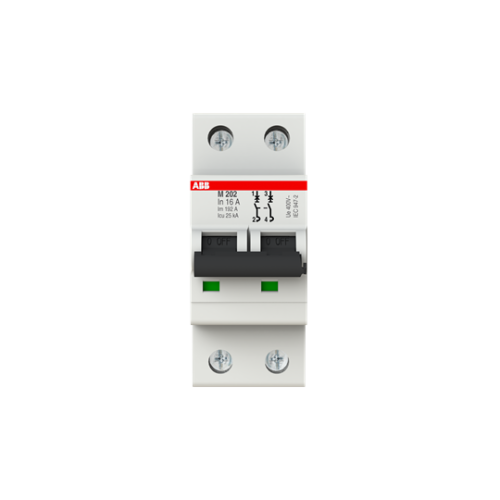

M202-16A Miniature Circuit Breaker - 2P - 16 A

Manufacturer's No: M202-16A     Manufacturer: ABB
M202-16A Miniature Circuit Breaker - 2P - 16 A

Availability Back Order

POA
  • Product: M202-16A Miniature Circuit Breaker
  • Configuration: 2P
  • Current Rating: 16 A


Product

Manufacturer Material ID -
M202-16A
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
- kiloampere
Built-in depth -
69 Millimetre
Rated voltage -
230 Volt
Release characteristic -
Other
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
25 kiloampere
Voltage type -
AC
Recess depth -
69 Millimetre
Rated current -
16 Ampere
Frequency -
50 Hertz
Rated insulation voltage Ui -
440 Volt
Current limiting class -
3
Over voltage category -
3
Pollution degree -
3
Width in number of modular spacings -
2
Degree of protection (IP rating) -
IP20
Number of protected poles -
2
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Ambient temperature during operating -
-25 Degrees celsius
Additional equipment possible -
Number of poles (total) -
2
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
12.5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
25 kiloampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
ABB

Availability Back Order

POA
