2CSG251161R4051

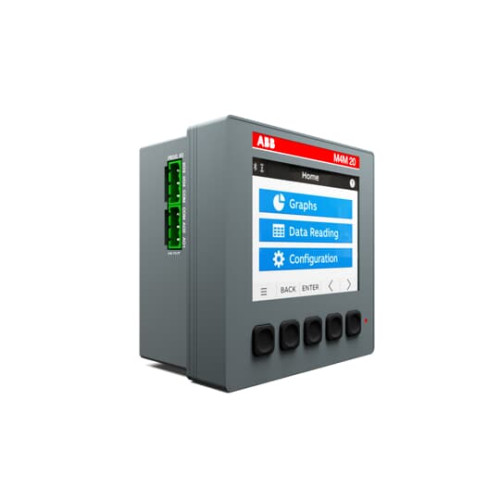

M4M 20 I/O Network analyzer

Manufacturer's No: M4M 20 I/O     Manufacturer: ABB
M4M 20 I/O Network analyzer

Availability On Request

£538.97
  • Network analyzer with 2 digital outputs
  • 2 analogue inputs
  • 2 programmable I/O
  • Auxiliary supply: 48-240 V AC/DC
  • Bluetooth connectivity
  • Modbus RTU support


Product

Manufacturer Material ID -
M4M 20 I/O
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
90303100
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Mounting method -
Front mounting
Pulse output -
None
Approval -
Domestic
Calibrated -
Degree of protection (IP rating) -
IP54
Depth -
77 Millimetre
Energy type -
Effective power and blind power
Escapement mechanism -
Frequency -
50 Hertz
Height -
96 Millimetre
Max. current (Imax) -
6 Ampere
Model -
Measurement transformer
Nominal current (In) -
6 Ampere
Number of positions total (counter) -
8
Pole type -
Three conductor/four conductor
Power consumption -
10 Watt
Type of indicator -
Digital
Type of meter -
Electronic
Width -
96 Millimetre
Width in number of modular spacings -
5.5
ABB

Availability On Request

£538.97
