63001075

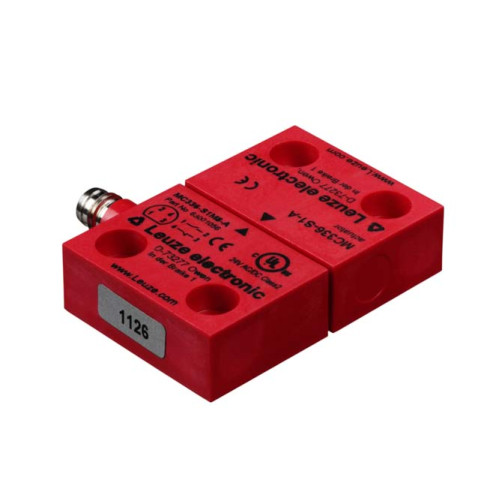

Contact allocation: 2NO; Connection: Connector, M8, Metal, 4 -pin; Dimension: 26.2 mm x 13 mm x 36 mm; Housing material: Plastic,

Manufacturer's No: MC336-S2M8-AL2     Manufacturer: Leuze
Contact allocation: 2NO; Connection: Connector, M8, Metal, 4 -pin; Dimension: 26.2 mm x 13 mm x 36 mm; Housing material: Plastic, Glass fiber reinforced (PPS), self-extinguishing; External actuator:

Availability On Request

£69.00
  • Contact allocation: 2NO
  • Connection: Connector, M8, Metal, 4-pin
  • Dimension: 26.2 mm x 13 mm x 36 mm
  • Housing material: Plastic, Glass fiber reinforced (PPS), self-extinguishing
  • External actuator: Magnetically coded
  • Cut-out point (OFF), min.: 17 mm
  • Assured cut-out distance (Sar), min.: 20 mm
  • Assured cut-in distance (Sao), max.: 7 mm
  • Degree of protection: IP 67
  • Certifications: c UL US, TÜV Süd (with suitable safety relay)

Accessories

Others



Product

Manufacturer Material ID -
MC336-S2M8-AL2
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
90328900
Country of Origin -
IT
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-20 Degrees celsius
Coating housing -
Uncoated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
13 Millimetre
Housing material -
Plastic
Length of sensor -
36 Millimetre
Max. output current at protected output -
100 Milliampere
Mechanical mounting condition for sensor -
Other
Min. output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
0
Protected switch distance OFF -
20 Millimetre
Protected switch distance ON -
7 Millimetre
Suitable for safety functions -
Switching distance -
17 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Connector M8
Voltage type -
AC/DC
Width sensor -
26.2 Millimetre
Leuze

Availability On Request

£69.00
