50144901

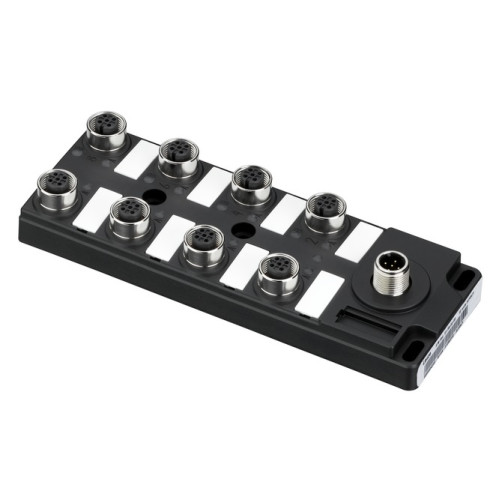

Leuze - MD 742-11-82IO5-12

Manufacturer's No: MD 742-11-82IO5-12     Manufacturer: Leuze
Leuze - MD 742-11-82IO5-12

Availability On Request

£173.00
  • Type: IO-Hub
  • Interface: IO-Link
  • Current consumption, max: 15 mA
  • Sensor connections: 8 pieces
  • Connections for voltage supply: 1 piece
  • Connections: 9 pieces, Connector, M12, Metal, 5-pin
  • Design: Cubic housing
  • Dimensions: 54 mm x 27.4 mm x 150 mm
  • Housing material: Plastic, Halogen-free
  • Ambient temperature, operation: -40°C to 70°C

Read more

  • Degree of protection: IP 67, IP 65, IP 69K
  • Certifications: c UL US

Accessories



Product

Manufacturer Material ID -
MD 742-11-82IO5-12
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
MX
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
DV003_80px_PPIC_MD 742-11-82IO5-12_R.jpg
Degree of protection (IP rating) -
IP67
Depth -
150 Millimetre
Height -
27.4 Millimetre
Number of other ports -
8
Width -
54 Millimetre
Leuze

Availability On Request

£173.00
