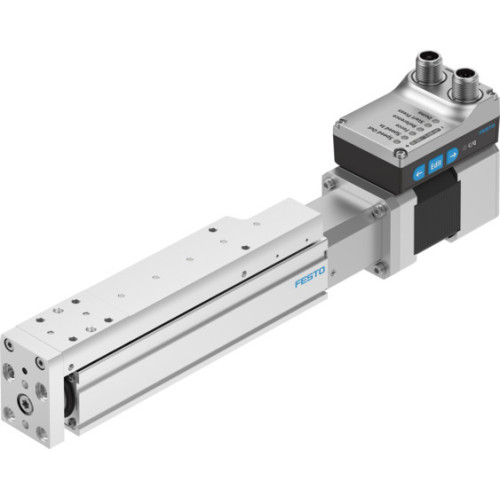

EGSS-BS-KF-32-100-8P-ST-M-H1-PLK-AA Mini slide unit

Manufacturer's No: EGSS-BS-KF-32-100-8P-ST-M-H1-PLK-AA     Manufacturer: Festo
EGSS-BS-KF-32-100-8P-ST-M-H1-PLK-AA Mini slide unit

Availability Back Order

£1,034.97
  • Mini slide unit
  • Working stroke: 100 mm
  • Size: 32
  • Spindle diameter: 8 mm
  • Spindle pitch: 8 Y13
  • Design: Electric mini slide with ball screw drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder, proximity switch
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Max. acceleration: 5 m/s²

Read more

  • Max. speed: 0.19 m/s
  • Repetition accuracy: ±0.015 mm
  • Max. current consumption: 3 A
  • Nominal voltage DC: 24 V
  • Parameterisation interface: IO-Link, User interface
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Dynamic basic load rating fixed bearing: 3795 N
  • Max. force Fy: 991 N
  • Max. moment Mx: 3.4 Nm
  • Max. radial force at drive shaft: 140 N
  • Reference service life: 5000 km
  • Moving mass for 0 mm stroke: 149 g
  • Product weight: 1225 g
  • Number of digital logic outputs 24 V DC: 2
  • Number of digital logic inputs: 2
  • IO-Link, Min. cycle time: 1 ms
  • Max. cable length: 15 m outputs, 15 m inputs, 20 m with IO-Link® operation
  • Material guide slide: Rolled steel
  • Material guide rail: Rolled steel
  • Material housing: Anodised wrought aluminium alloy
  • Material yoke plate: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Material slide: Anodised wrought aluminium alloy
  • Material spindle nut: Rolled steel
  • Material spindle: Rolled steel

Accessories



Product

Manufacturer Material ID -
EGSS-BS-KF-32-100-8P-ST-M-H1-PLK-AA
Net Weight -
1.27kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
