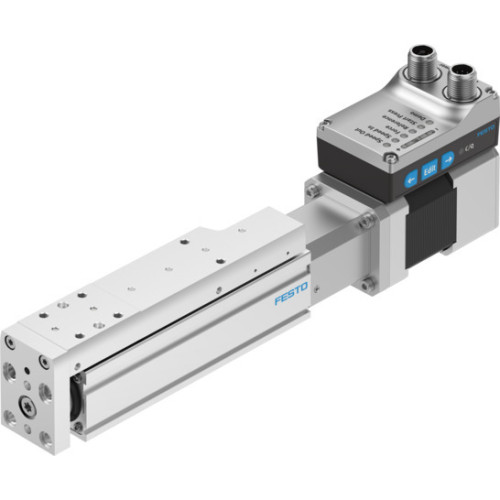

EGSS-BS-KF-32-75-8P-ST-M-H1-PLK-AA Mini slide unit

Manufacturer's No: EGSS-BS-KF-32-75-8P-ST-M-H1-PLK-AA     Manufacturer: Festo
EGSS-BS-KF-32-75-8P-ST-M-H1-PLK-AA Mini slide unit

Availability Back Order

£1,029.85
  • Mini slide unit
  • Working stroke: 75 mm
  • Size: 32
  • Spindle diameter: 8 mm
  • Spindle pitch: 8 Y13
  • Design: Electric mini slide with ball screw drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder, via proximity switch
  • Rotor position sensor: Absolute single-turn encoder, magnetic measuring principle
  • Max. acceleration: 5 m/s²

Read more

  • Max. speed: 0.19 m/s
  • Repetition accuracy: ±0.015 mm
  • Max. current consumption: 3 A
  • Nominal voltage DC: 24 V
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Vibration resistance: Transport application test level 1
  • Shock resistance: Shock test level 1
  • Corrosion resistance class CRC: 0
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Max. radial force at drive shaft: 140 N
  • Max. feed force: 60 N
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Product weight: 1150 g
  • Material guide slide: Rolled steel
  • Material guide rail: Rolled steel
  • Material housing: Anodised wrought aluminium alloy
  • Material yoke plate: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Material slide: Anodised wrought aluminium alloy
  • Material spindle nut: Rolled steel
  • Material spindle: Rolled steel

Accessories



Product

Manufacturer Material ID -
EGSS-BS-KF-32-75-8P-ST-M-H1-PLK-AA
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
