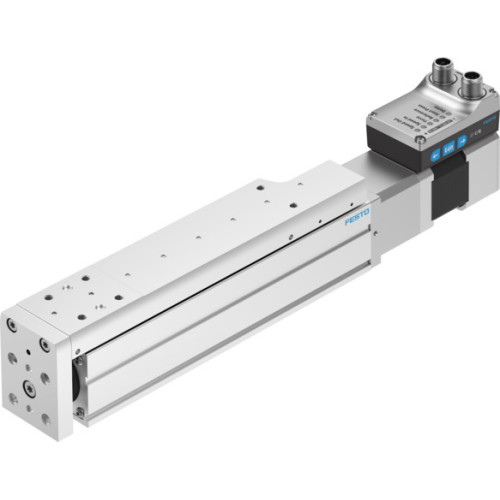

EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AA Mini slide unit

Manufacturer's No: EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AA     Manufacturer: Festo
EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AA Mini slide unit

Availability Available to order

£1,137.45
  • Mini slide unit
  • Working stroke: 150 mm
  • Size: 45
  • Spindle diameter: 10 mm
  • Spindle pitch: 10 Y13
  • Design: Electric mini slide with ball screw drive and integrated drive
  • Motor type: Stepper motor
  • Guide: Recirculating ball bearing guide
  • Position detection: Motor encoder and proximity switch
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle

Read more

  • Protective function: Temperature monitoring
  • Additional functions: User interface and integrated end-position sensing
  • Display: LED for ready status indication
  • Max. acceleration: 5 m/s²
  • Max. speed: 0.25 m/s
  • Repetition accuracy: ±0.015 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage: 24 V DC
  • Nominal current: 3 A
  • Parameterisation interface: IO-Link and user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Degree of protection: IP40
  • Protection class: III
  • Ambient temperature range: 0°C to 50°C
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Corrosion resistance class: 0 - No corrosion stress
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Storage temperature range: -20°C to 60°C
  • Max. radial force at drive shaft: 340 N
  • Max. feed force: 120 N
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Product weight: 2181 g
  • Material: Anodised wrought aluminium alloy, high-alloy stainless steel, rolled steel


Product

Manufacturer Material ID -
EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AA
Net Weight -
2.15kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
