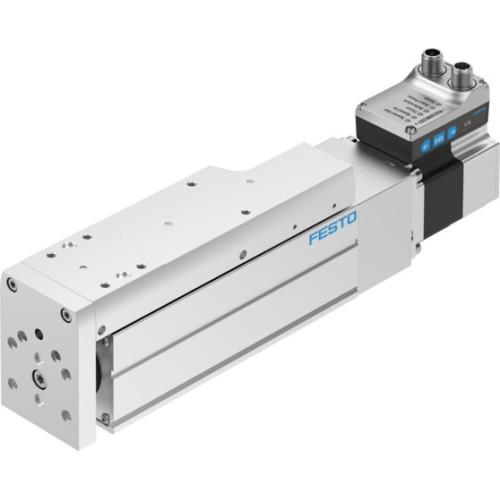

EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA Mini slide unit

Manufacturer's No: EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA     Manufacturer: Festo
EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA Mini slide unit

Availability Available to order

£1,226.25
  • Product: Mini slide unit EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
  • Working Stroke: 100 mm
  • Size: 60
  • Spindle Diameter: 12 mm
  • Spindle Pitch: 12 Y13
  • Design: Electric mini slide with ball screw drive and integrated drive
  • Motor Type: Stepper motor
  • Guide: Recirculating ball bearing guide
  • Max. Speed: 0.24 m/s
  • Max. Acceleration: 5 m/s²

Read more

  • Repetition Accuracy: ±0.015 mm
  • Position Detection: Motor encoder and proximity switch
  • Rotor Position Sensor: Absolute single-turn encoder with magnetic measuring principle
  • Additional Functions: User interface, integrated end-position sensing
  • Display: LED
  • Ready Status Indication: LED
  • Nominal Voltage: 24 V DC
  • Nominal Current: 5.3 A
  • Max. Current Consumption: 5300 A
  • Insulation Protection Class: B
  • Duty Cycle: 100%
  • Max. Radial Force at Drive Shaft: 420 N
  • Max. Feed Force: 250 N
  • Max. Force Fy and Fz: 4937 N
  • Max. Moment Mx, My, and Mz: 20 NM, 30 NM, 30 NM respectively
  • Static Basic Load Rating: Ball screw 8500 N, Linear guide 26900 N
  • Reference Service Life: 5000 km
  • Storage Temperature: -20°C to 60°C
  • Relative Air Humidity: 0 - 90%
  • Degree of Protection: IP40
  • Protection Class: III
  • Vibration Resistance: Level 1 according to FN 942017-4 and EN 60068-2-6
  • Shock Resistance: Level 1 according to FN 942017-5 and EN 60068-2-27
  • Cleanroom Class: Class 9 according to ISO 14644-1
  • Material: Anodised wrought aluminium alloy, high-alloy stainless steel, rolled steel
  • RoHS-Compliant Materials
  • Mounting: Via female thread, centring sleeve, cylindrical pin, with accessories


Product

Manufacturer Material ID -
EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
Net Weight -
3.88kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
