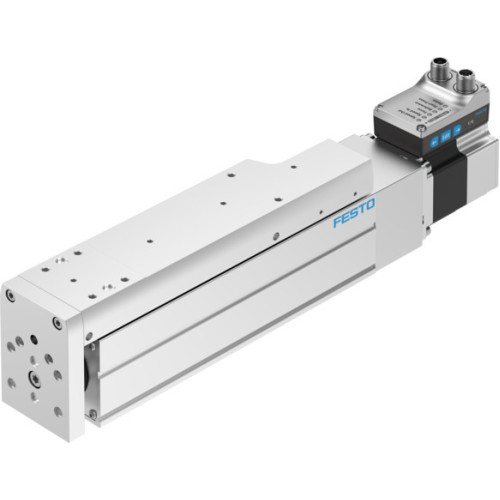

EGSS-BS-KF-60-150-12P-ST-M-H1-PLK-AA Mini slide unit

Manufacturer's No: EGSS-BS-KF-60-150-12P-ST-M-H1-PLK-AA     Manufacturer: Festo
EGSS-BS-KF-60-150-12P-ST-M-H1-PLK-AA Mini slide unit

Availability Back Order

£1,243.32
  • Product: Mini slide unit EGSS-BS-KF-60-150-12P-ST-M-H1-PLK-AA
  • Working stroke: 150 mm
  • Size: 60
  • Spindle diameter: 12 mm
  • Spindle pitch: 12 Y13
  • Design: Electric mini slide with ball screw drive and integrated drive
  • Motor type: Stepper motor
  • Guide: Recirculating ball bearing guide
  • Position detection: Motor encoder and proximity switch
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle

Read more

  • Max. acceleration: 5 m/s²
  • Max. speed: 0.24 m/s
  • Repetition accuracy: ±0.015 mm
  • Max. current consumption: 5.3 A
  • Nominal voltage: 24 V DC
  • Parameterisation interface: IO-Link and user interface
  • Vibration resistance: Level 1 according to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Level 1 according to FN 942017-5 and EN 60068-2-27
  • Corrosion resistance: Class 0 - No corrosion stress
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Degree of protection: IP40
  • Ambient temperature range: 0°C to 50°C
  • Max. radial force at drive shaft: 420 N
  • Max. feed force: 250 N
  • Reference service life: 5000 km
  • Maintenance interval: Lifetime lubrication
  • Product weight: 4160 g
  • Material: Anodised wrought aluminium alloy, high-alloy stainless steel, rolled steel
  • Mounting options: Via female thread, centring sleeve, cylindrical pin, with accessories
  • Logic interface: PNP (positive switching) with 8 pins/wires
  • IO-Link features: SIO-Mode support, configurable inputs/outputs, communication at 230.4 kBaud
  • Cable length: 15 m for outputs and inputs, 20 m with IO-Link operation
  • Logic interface connection technology: M12x1, A-coded according to EN 61076-2-101
  • RoHS-compliant materials

Accessories



Product

Manufacturer Material ID -
EGSS-BS-KF-60-150-12P-ST-M-H1-PLK-AA
Net Weight -
4.20kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
