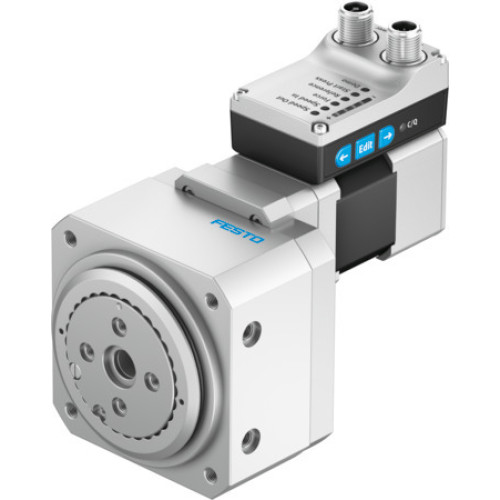

ERMS-25-180-ST-M-H1-PLK-AA Rotary drive unit

Manufacturer's No: ERMS-25-180-ST-M-H1-PLK-AA     Manufacturer: Festo
ERMS-25-180-ST-M-H1-PLK-AA Rotary drive unit

Availability Back Order

£1,072.53
  • Size: 25
  • Design: Electromechanical rotary drive with integrated gear unit
  • Rotation angle: 180°
  • Gear unit ratio: 9:1
  • Max. rotational speed: 150 RPM
  • Max. speed at 90°: 105 RPM
  • Torsional backlash: 0.2°
  • Repetition accuracy: ±0.05°
  • Max. axial force: 350 N
  • Max. radial force: 450 N

Read more

  • Permissible mass moment of inertia: 0.0065 kgm²
  • Product weight: 1472 g
  • Stepper angle for complete step: 1.8°
  • Stepping angle tolerance: ±5%
  • Duty cycle: 100%
  • Nominal voltage DC: 24 V
  • Nominal current: 3 A
  • Max. current consumption: 3000 A
  • Permissible voltage fluctuations: ±15%
  • Number of digital logic inputs: 2
  • Number of digital logic outputs 24 V DC: 2
  • Max. current digital logic outputs: 100 mA
  • IO-Link, SIO-Mode support: Yes
  • IO-Link, Protocol version: Device V 1.1
  • IO-Link, communication mode: COM3 (230.4 kBaud)
  • Interface code, basis: E8-55
  • Peak torque: 2.7 Nm
  • Degree of protection: IP40
  • Protection class: III
  • Storage temperature: -20°C to 60°C
  • Ambient temperature: 0°C to 50°C
  • Relative air humidity: 0 - 85%
  • Vibration resistance: Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
  • Material flange: Anodised wrought aluminium alloy
  • Material housing: Anodised wrought aluminium alloy
  • Maintenance interval: Life-time lubrication

Accessories

ZBH-9-B Centring sleeve

Product Code - 8137184
Price £1.59
Back Order


Product

Manufacturer Material ID -
ERMS-25-180-ST-M-H1-PLK-AA
Net Weight -
1.55kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
