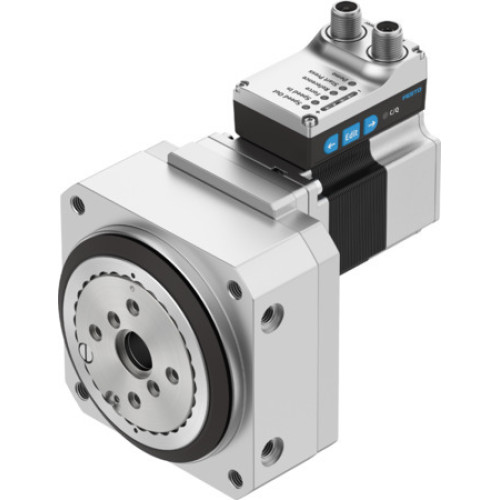

ERMS-32-180-ST-M-H1-PLK-AA Rotary drive unit

Manufacturer's No: ERMS-32-180-ST-M-H1-PLK-AA     Manufacturer: Festo
ERMS-32-180-ST-M-H1-PLK-AA Rotary drive unit

Availability Available to order

£1,113.52
  • Size: 32
  • Design: Electromechanical rotary drive with integrated gear unit
  • Rotation angle: 180°
  • Gear unit ratio: 7:1
  • Max. rotational speed: 100 RPM
  • Torsional backlash: 0.2°
  • Repetition accuracy: ±0.1°
  • Max. axial force: 450 N
  • Max. radial force: 550 N
  • Permissible mass moment of inertia: 0.0164 kgm²

Read more

  • Product weight: 2304 g
  • Stepper angle for complete step: 1.8°
  • Stepping angle tolerance: ±5%
  • Duty cycle: 100%
  • Nominal voltage DC: 24 V
  • Nominal current: 5.3 A
  • Max. current consumption: 5300 A
  • Number of digital logic inputs: 2
  • Number of digital logic outputs 24 V DC: 2
  • Max. current digital logic outputs: 100 mA
  • IO-Link, SIO-Mode support: Yes
  • Interface code, basis: E8-55
  • Peak torque: 5.6 Nm
  • Degree of protection: IP40
  • Protection class: III
  • Storage temperature: -20°C to 60°C
  • Ambient temperature: 0°C to 50°C
  • Relative air humidity: 0 - 85%
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Material flange: Anodised wrought aluminium alloy
  • Material housing: Anodised wrought aluminium alloy
  • Speed: 2 m/s
  • Max. current consumption, logic: 0.3 A
  • Maintenance interval: Life-time lubrication


Product

Manufacturer Material ID -
ERMS-32-180-ST-M-H1-PLK-AA
Net Weight -
2.37kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
Festo

Availability Available to order

£1,113.52
