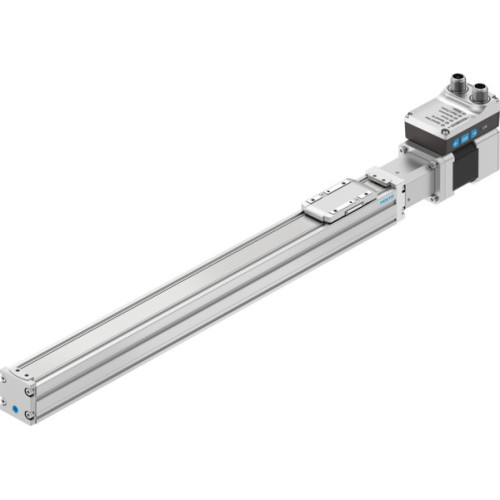

ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA Ball screw axis unit

Manufacturer's No: ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA Ball screw axis unit

Availability Back Order

£1,214.62
  • ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA Ball screw axis unit
  • Working stroke: 300 mm
  • Size: 32
  • Spindle diameter: 8 mm
  • Spindle pitch: 8 Y13
  • Design: Electromechanical linear axis with ball screw and integrated drive
  • Motor type: Stepper motor
  • Mounting position: Optional
  • Guide: Recirculating ball bearing guide
  • Position detection: Motor encoder and proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED, ready status indication: LED
  • Max. acceleration: 5 m/s², max. speed: 0.18 m/s
  • Repetition accuracy: ±0.015 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage DC: 24 V, nominal current: 3 A
  • Parameterisation interface: IO-Link and user interface
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 90%
  • Degree of protection: IP40, protection class: III
  • Ambient temperature: 0°C to 50°C
  • Max. force: 356 N, max. moment: 1.3 Nm
  • Reference service life: 5000 km, maintenance interval: Life-time lubrication
  • Product weight: 1429 g
  • Dynamic deflection: 0.05% of the axis length, max. 0.5 mm
  • Static deflection: 0.1% of the axis length
  • IO-Link features: SIO-Mode support, configurable logic inputs and outputs
  • IO-Link, Protocol version: Device V 1.1, communication mode: COM3 (230.4 kBaud)
  • Max. cable length: 15 m for outputs, 15 m for inputs, 20 m with IO-Link® operation
  • Switching logic: PNP (positive switching)
  • Material: Anodised wrought aluminium alloy, steel, high-alloy stainless steel, die-cast aluminium

Accessories



Product

Manufacturer Material ID -
ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA
Net Weight -
1.43kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
