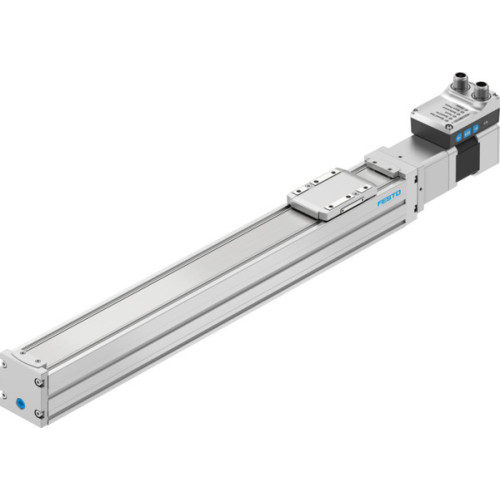

ELGS-BS-KF-45-300-10P-ST-M-H1-PLK-AA Ball screw axis unit

Manufacturer's No: ELGS-BS-KF-45-300-10P-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-BS-KF-45-300-10P-ST-M-H1-PLK-AA Ball screw axis unit

Availability Back Order

£1,177.06
  • ELGS-BS-KF-45-300-10P-ST-M-H1-PLK-AA Ball screw axis unit
  • Working stroke: 300 mm
  • Size: 45
  • Spindle diameter: 10 mm
  • Spindle pitch: 10 Y13
  • Guide: Recirculating ball bearing guide
  • Design: Electromechanical linear axis with ball screw and integrated drive
  • Motor type: Stepper motor
  • Spindle type: Ball screw drive
  • Position detection: Motor encoder and proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature and integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface and integrated end-position sensing
  • Display: LED
  • Max. acceleration: 5 m/s²
  • Max. speed: 0.25 m/s
  • Repetition accuracy: ±0.015 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage: 24 V DC
  • Nominal current: 3 A
  • Parameterisation interface: IO-Link and user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Protection class: III
  • Degree of protection: IP40
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0-90%
  • Ambient temperature: 0°C to 50°C
  • Max. force: 880 N (Fy and Fz)
  • Max. force total axis: 300 N (Fy) and 600 N (Fz)
  • Max. moment: 5.5 Nm (Mx) and 4.7 Nm (My, Mz)
  • Max. moment total axis: 5.5 Nm (Mx) and 4.7 Nm (My, Mz)
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Product weight: 2434 g
  • Dynamic deflection: 0.05% of the axis length, max. 0.5 mm
  • Static deflection: 0.1% of the axis length
  • Number of digital logic outputs: 2 (24 V DC)
  • Number of digital logic inputs: 2
  • IO-Link support: Yes
  • IO-Link protocol version: Device V 1.1
  • Max. cable length: 15 m (outputs and inputs), 20 m with IO-Link operation
  • Switching logic: PNP (positive switching)
  • Material: Painted die-cast aluminum, anodized wrought aluminum alloy, high-alloy stainless steel, steel

Accessories

ZBS-4 Centring pin

Product Code - 562959
Price £1.59
Back Order


Product

Manufacturer Material ID -
ELGS-BS-KF-45-300-10P-ST-M-H1-PLK-AA
Net Weight -
2.30kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
