ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA Ball screw axis unit

Manufacturer's No: ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA     Manufacturer: Festo

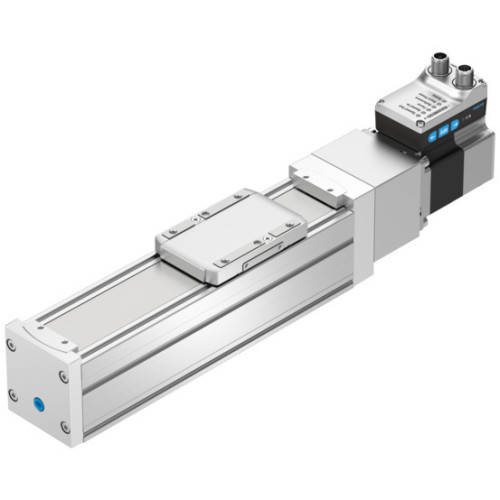

ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA Ball screw axis unit

Availability Available to order

£1,216.69
  • ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA Ball screw axis unit
  • Working stroke: 100mm
  • Size: 60
  • Spindle diameter: 12mm
  • Spindle pitch: 12 Y13
  • Design: Electromechanical linear axis with ball screw and integrated drive
  • Motor type: Stepper motor
  • Mounting position: Optional
  • Guide: Recirculating ball bearing guide
  • Position detection: Motor encoder and proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature and integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface and integrated end-position sensing
  • Display: LED
  • Max. acceleration: 5 m/s²
  • Max. speed: 0.25 m/s
  • Repetition accuracy: ±0.01 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage: 24V DC
  • Nominal current: 5.3A
  • Parameterisation interface: IO-Link and user interface
  • Rotor position transducer resolution: 16 BIT
  • Permissible voltage fluctuations: ±15%
  • Power supply connection type: Plugs, M12x1, T-coded according to EN 61076-2-111
  • Approval: RCM trademark, KC-EMV, CE mark (EU EMC Directive, EU RoHS Directive), UKCA marking (UK EMC and RoHS instructions)
  • Vibration resistance: Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0-90%
  • Degree of protection: IP40, Protection class: III
  • Ambient temperature: 0°C to 50°C
  • Max. force: Fy 3641N, Fz 3641N, Fy total axis 600N, Fz total axis 1800N
  • Max. moment: Mx 29.1Nm, My 31.8Nm, Mz 31.8Nm, Mx total axis 29.1Nm, My total axis 31.8Nm, Mz total axis 31.8Nm
  • Max. feed force: Fx 200N
  • Reference value effective load: Horizontal 20kg, Vertical 13kg
  • Torsional mass moment of inertia: 29800 Y12
  • Feed constant: 12 Y13
  • Reference service life: 5000km, Maintenance interval: Life-time lubrication
  • Moving mass: 525g, Product weight: 3372g
  • Dynamic deflection: 0.05% of the axis length, max. 0.5mm
  • Static deflection: 0.1% of the axis length
  • Number of digital logic outputs 24V DC: 2, Number of digital logic inputs: 2
  • IO-Link support, SIO-Mode: Yes
  • IO-Link, Protocol version: Device V 1.1, Communication mode: COM3 (230.4 kBaud)
  • IO-Link, Port class: A, Number of ports: 1
  • IO-Link, Min. cycle time: 1ms, Data storage required: 500KB
  • Max. cable length: 15m outputs, 15m inputs, 20m with IO-Link® operation
  • Switching logic for outputs and inputs: PNP (positive switching)
  • Logic interface connection technology: Plugs, M12x1, A-coded according to EN 61076-2-101
  • Material: End cap - Painted die-cast aluminium, Profile - Anodised wrought aluminium alloy, Cover tape - High-alloy stainless steel, Drive cover - Painted die-cast aluminium, Guide slide and rail - Steel, Slide - Die-cast aluminium, Spindle nut and spindle - Steel
  • RoHS-compliant materials
