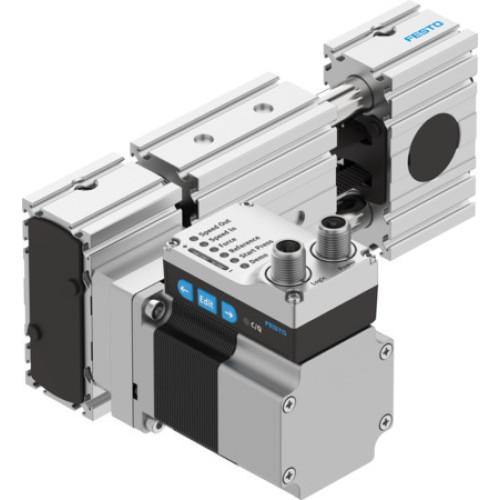

ELGE-TB-35-100-0H-ST-M-H1-PLK-AA-AT-FR Toothed belt axis unit

Manufacturer's No: ELGE-TB-35-100-0H-ST-M-H1-PLK-AA-AT-FR     Manufacturer: Festo
ELGE-TB-35-100-0H-ST-M-H1-PLK-AA-AT-FR Toothed belt axis unit

Availability Available to order

£1,015.85
  • Toothed belt axis unit
  • Effective diameter of drive pinion: 18.46 mm
  • Working stroke: 100 mm
  • Size: 35
  • Toothed-belt stretch: 0.094%
  • Toothed-belt pitch: 2 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder, proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED
  • Max. acceleration: 8.5 m/s²
  • Max. speed: 0.72 m/s
  • Repetition accuracy: ±0.1 mm
  • Features of digital logic outputs: Configurable, not galvanically isolated
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA, max. current consumption: 5300 A, max. current consumption for logic: 0.3 A
  • Nominal voltage DC: 24 V, nominal current: 5.3 A
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Power supply: Plugs, M12x1 T-coded according to EN 61076-2-111, 4 pins/wires, connection pattern: 995989
  • Approvals: RCM trademark, KC-EMV, CE mark to EU EMC Directive, in accordance with EU RoHS Directive, UKCA marking to UK instructions for EMC and RoHS
  • Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 90%
  • Degree of protection: IP20, protection class: III
  • Ambient temperature: 0°C to 50°C, power reduction by 2% per K above 30°C
  • Max. force and moment values for different directions
  • Reference service life: 5000 km, maintenance interval: Life-time lubrication
  • Additional moving mass per 10 mm stroke: 0.31 g
  • Product weight: 2740 g
  • Number of digital logic outputs and inputs: 2 each
  • Specification logic input: Based on IEC 61131-2, type 1, working range of logic input: 24 V
  • IO-Link support, SIO-Mode: Yes, configurable and not galvanically isolated
  • IO-Link details: Protocol version: Device V 1.1, communication mode: COM3 (230.4 kBaud), Port class: A, Number of ports: Device 1, Process data details
  • Max. cable length: 15 m for outputs, 15 m for inputs, 20 m with IO-Link operation
  • Switching logic for outputs and inputs: PNP (positive switching)
  • Logic interface details: Connection type: Plug, technology: M12x1 A-coded according to EN 61076-2-101, 8 pins/wires, plug pattern: 992264
  • Type of mounting: Profile mounting
  • Material details: Anodised wrought aluminium alloy for profile, drive cover, and slide; High-alloy stainless steel for pulleys; Beryllium bronze for toothed belt clamping piece
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ELGE-TB-35-100-0H-ST-M-H1-PLK-AA-AT-FR
Net Weight -
2.56kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
