ELGS-TB-KF-45-500-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-45-500-ST-M-H1-PLK-AA     Manufacturer: Festo

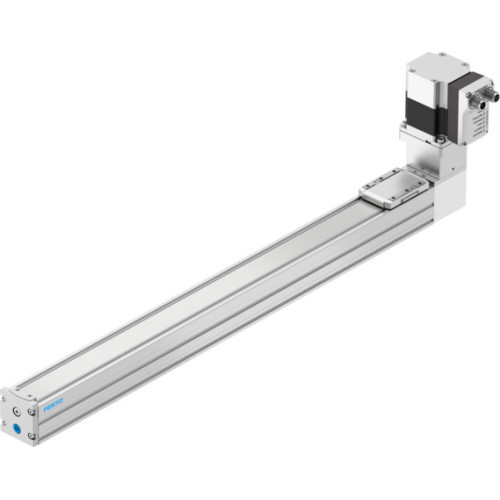

ELGS-TB-KF-45-500-ST-M-H1-PLK-AA Toothed belt axis unit

Availability Available to order

£1,097.13
  • Toothed belt axis unit ELGS-TB-KF-45-500-ST-M-H1-PLK-AA
  • Effective diameter of drive pinion: 19.1 mm
  • Working stroke: 500 mm
  • Size: 45
  • Toothed-belt stretch: 0.187%
  • Toothed-belt pitch: 2 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder, proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder, magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated CMOS temperature sensor
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED
  • Max. acceleration: 6 m/s²
  • Max. speed: 1.2 m/s
  • Repetition accuracy: ±0.1 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA
  • Max. current consumption: 5.3 A
  • Nominal voltage DC: 24 V
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Protection class: III
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Storage temperature: -20°C to 60°C
  • Vibration resistance: Transport application test level 1
  • Shock resistance: Shock test level 1
  • Cleanroom class: Class 7
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Weight: 2940 g
  • Max. force Fy: 880 N, Fz: 880 N
  • Max. moment Mx: 5.5 Nm, My: 4.7 Nm, Mz: 4.7 Nm
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Max. cable length: 15 m (outputs and inputs), 20 m with IO-Link® operation
  • Material: Painted die-cast aluminum, anodized wrought aluminum alloy, stainless steel strip, tempered steel, high-alloy stainless steel, polychloroprene with glass fiber


Product

Manufacturer Material ID -
ELGS-TB-KF-45-500-ST-M-H1-PLK-AA
Net Weight -
3.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
