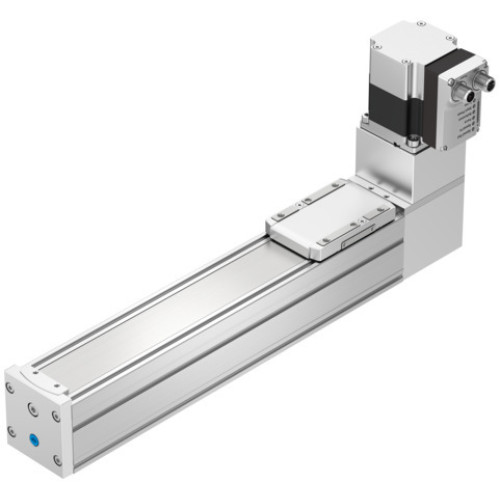

ELGS-TB-KF-60-200-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-60-200-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-TB-KF-60-200-ST-M-H1-PLK-AA Toothed belt axis unit

Availability Back Order

£1,067.07
  • Type: Toothed belt axis unit
  • Effective diameter of drive pinion: 24.83 mm
  • Working stroke: 200 mm
  • Size: 60
  • Toothed-belt stretch: 0.124%
  • Toothed-belt pitch: 3 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Motor type: Stepper motor
  • Position detection: Motor encoder, proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated CMOS temperature sensor
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED
  • Max. acceleration: 6 m/s²
  • Max. speed: 1.04 m/s
  • Repetition accuracy: ±0.1 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage: 24 V
  • Nominal current: 5.3 A
  • Parameterisation interface: IO-Link, User interface
  • Rotor position transducer resolution: 16 bit
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Degree of protection: IP40
  • Protection class: III
  • Ambient temperature: 0°C to 50°C
  • Max. force: Fy 3641 N, Fz 3641 N
  • Max. force total axis: Fy 600 N, Fz 1800 N
  • Max. moment: Mx 29.1 Nm, My 31.8 Nm, Mz 31.8 Nm
  • Max. moment total axis: Mx 29.1 Nm, My 31.8 Nm, Mz 31.8 Nm
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 482 g
  • Weight: 3815 g
  • Dynamic deflection: 0.05% of the axis length, max. 0.5 mm
  • Static deflection: 0.1% of the axis length
  • Number of digital logic outputs 24 V DC: 2
  • Number of digital logic inputs: 2
  • IO-Link support: Yes
  • Max. cable length: 15 m for outputs, 15 m for inputs, 20 m with IO-Link operation
  • Switching logic: PNP (positive switching)
  • Material: Painted die-cast aluminum, anodized wrought aluminum alloy, stainless steel strip, tempered steel, high-alloy stainless steel, polychloroprene with glass fiber

Accessories

ZBH-5-B Centring sleeve

Product Code - 8146543
Price £1.32
Back Order


Product

Manufacturer Material ID -
ELGS-TB-KF-60-200-ST-M-H1-PLK-AA
Net Weight -
3.83kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
Festo

Availability Back Order

£1,067.07
