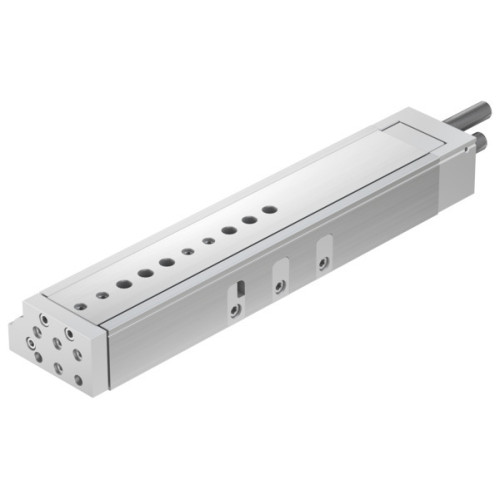

DGSL-25-200-P1A Mini slide

Manufacturer's No: DGSL-25-200-P1A     Manufacturer: Festo
DGSL-25-200-P1A Mini slide

Availability On Request

£1,345.52
  • Mini slide DGSL-25-200-P1A for position sensing
  • Highly accurate and durable ball-cage guide
  • Very high repetition accuracy
  • Flexible damping on both sides with metallic end position
  • Stroke: 200 mm
  • Adjustable end position range/front length: 110 mm
  • Adjustable end position range/rear length: 49 mm
  • Piston diameter: 32 mm
  • Operating mode of drive unit: Yoke
  • Cushioning: Elastic cushioning rings/pads at both ends with fixed stop

Read more

  • Guide: Ball bearing cage guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa to 8.0 MPa
  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.25 Nm
  • Cushioning length: 4.8 mm
  • Max. force Fy: 4800 N
  • Max. force Fz: 4800 N
  • Max. moment Mx: 130 Nm
  • Max. moment My: 80 Nm
  • Max. moment Mz: 80 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 415 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 483 N
  • Moving mass: 2432 g
  • Product weight: 6347 g
  • Pneumatic connection: G1/8
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGSL-25-200-P1A
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528
