1SAM350200R1011

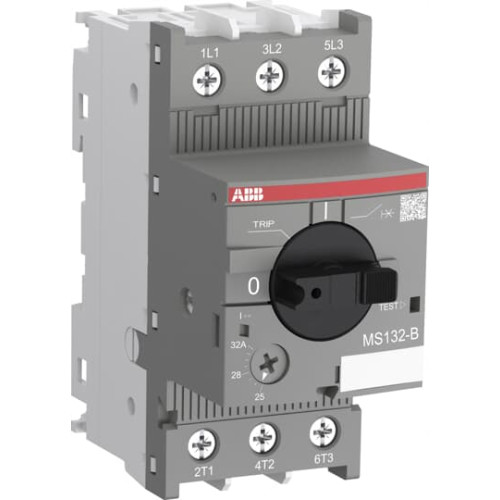

MS132-16B Manual Motor Starter 10 ... 16 A

Manufacturer's No: MS132-16B     Manufacturer: ABB
MS132-16B Manual Motor Starter 10 ... 16 A

Availability On Request

£129.91
  • MS132-16B Manual Motor Starter
  • Range: 10-16 A, up to 15 kW (400 V) / 32 A
  • Compact design: 45 mm width
  • Complies with latest railway rolling stock standards
  • Reliable motor protection against overload or phase failure
  • Trip class 10
  • Clear indication of faults in separate window for short-circuit tripping
  • Built-in disconnect function, temperature compensation, trip-free mechanism
  • Rotary handle with clear switch position indication, lockable for security
  • Suitable for three- and single-phase applications

Read more

  • Accessories available: auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks
  • Designed according to IEC 60077 standard
  • Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
  • Usable according to European fire and smoke safety standard EN 45545-2


Product

Manufacturer Material ID -
MS132-16B
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85362010
UNSPSC -
39122330

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
240 Ampere
Degree of protection (IP rating) -
IP20
Depth -
86.55 Millimetre
Device construction -
Complete device in housing
Height -
97.8 Millimetre
Number of poles -
3
Overload release current setting -
10 Ampere
Phase failure sensitive -
Power loss -
8.4 Watt
Rated operating voltage -
250 Volt
Rated operation power at AC-3, 230 V -
7.5 Kilowatt
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Rated permanent current Iu -
16 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere
Switch off technique -
Thermomagnetic
Type of control element -
Rotating button
Type of electrical connection of main circuit -
Screw connection
Width -
45 Millimetre
With thermal overload protection -
ABB

Availability On Request

£129.91
